SKU: 81213M.EU

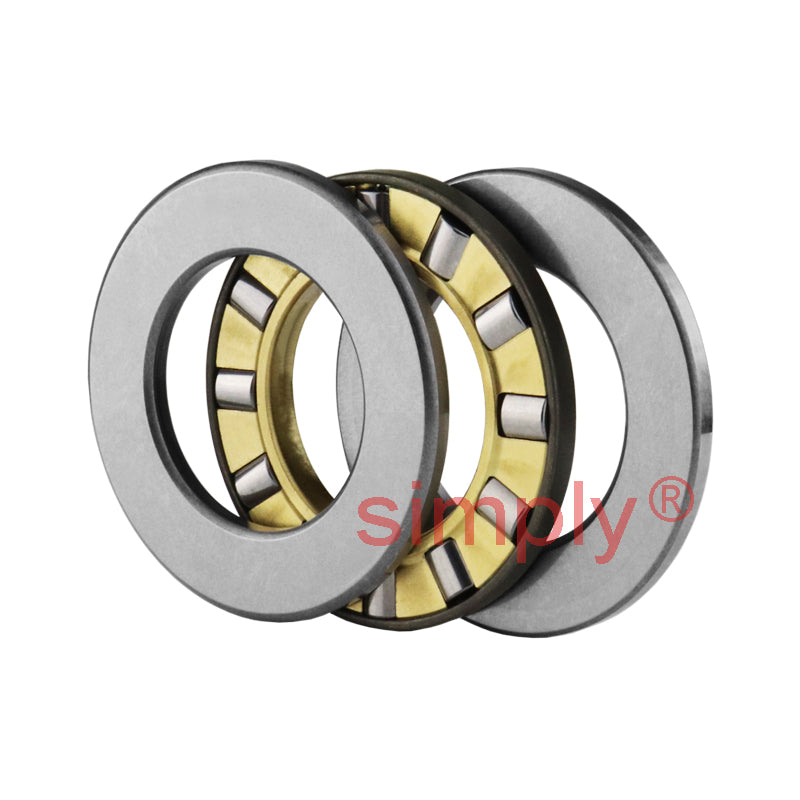

Premier Budget 81213M Cylindrical Roller Thrust Bearing with Brass Cage 65x100x27mm
Premier Budget 81213M Cylindrical Roller Thrust Bearing with Brass Cage 65x100x27mm
Regular price
Rs. 8,485.06
ex VAT
Regular price
Sale price
Rs. 8,485.06
ex VAT
Equivalent to: AZ6510027 K81213M 81213M
In stock
Price Break
10+
Rs. 7,551.70
19+
Rs. 7,127.45
29+
Rs. 7,042.60
39+
Rs. 6,957.75
49+
Rs. 6,872.90
74+
Rs. 6,788.05
99+
Rs. 6,363.80
199+
Rs. 6,278.94
249+
Rs. 6,194.09
499+
Rs. 6,109.24
999+
Rs. 5,939.54
Couldn't load pickup availability
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
Equivalent: AZ6510027 K81213M 81213M
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 100mm
- Width:
- 27mm
Technical
Technical
| d | 65mm |
|---|---|
| D | 100mm |
| H | 27mm |
| Dynamic load C | 140 kN |
| Static load Co | 490 kN |
| Fatigue load limit Pu | 50 kN |
| Min load factor A | 0.019 |
| Reference speed | 1300 rpm |
| Limiting speed | 2600 rpm |
| Cage reference | K81213M |
| Weight | 0.72 kg |
