SKU: 81124.TN.EU

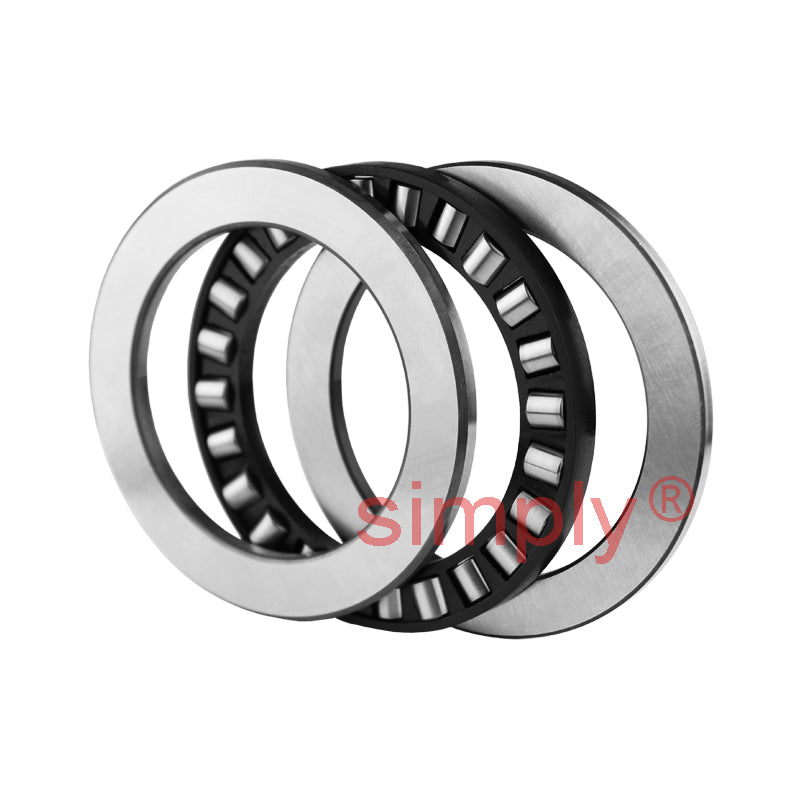

Premier Budget 81124TN Cylindrical Roller Thrust Bearing with Nylon Cage 120x155x25mm
Premier Budget 81124TN Cylindrical Roller Thrust Bearing with Nylon Cage 120x155x25mm
Regular price
Rs. 17,354.52
ex VAT
Regular price
Sale price
Rs. 17,354.52
ex VAT
Equivalent to: AZ12015525 K81124TN 81124TV
In stock
Price Break
10+
Rs. 15,445.52
19+
Rs. 14,577.80
29+
Rs. 14,404.25
39+
Rs. 14,230.71
49+
Rs. 14,057.16
74+
Rs. 13,883.62
99+
Rs. 13,015.89
199+
Rs. 12,842.34
249+
Rs. 12,668.80
499+
Rs. 12,495.25
999+
Rs. 12,148.16
Couldn't load pickup availability
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
Equivalent: AZ12015525 K81124TN 81124TV
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 155mm
- Width:
- 25mm
Technical
Technical
| d | 120mm |
|---|---|
| D | 155mm |
| H | 25mm |
| Dynamic load C | 170 kN |
| Static load Co | 735 kN |
| Fatigue load limit Pu | 68 kN |
| Min load factor A | 0.036 |
| Reference speed | 1100 rpm |
| Limiting speed | 2200 rpm |
| Cage reference | K81124TN |
| Weight | 1.1 kg |
