Renold SD 80-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1 inch Pitch
Renold SD 80-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1 inch Pitch
Regular price
Rs. 5,207.35
ex VAT
Regular price
Sale price
Rs. 5,207.35
ex VAT
In stock
Price Break
10+
Rs. 4,634.54
19+
Rs. 4,374.17
29+
Rs. 4,322.10
39+
Rs. 4,270.03
49+
Rs. 4,217.95
74+
Rs. 4,165.88
99+
Rs. 3,905.51
199+
Rs. 3,853.44
249+
Rs. 3,801.37
499+
Rs. 3,749.29
999+
Rs. 3,645.15
Couldn't load pickup availability
Description
Description

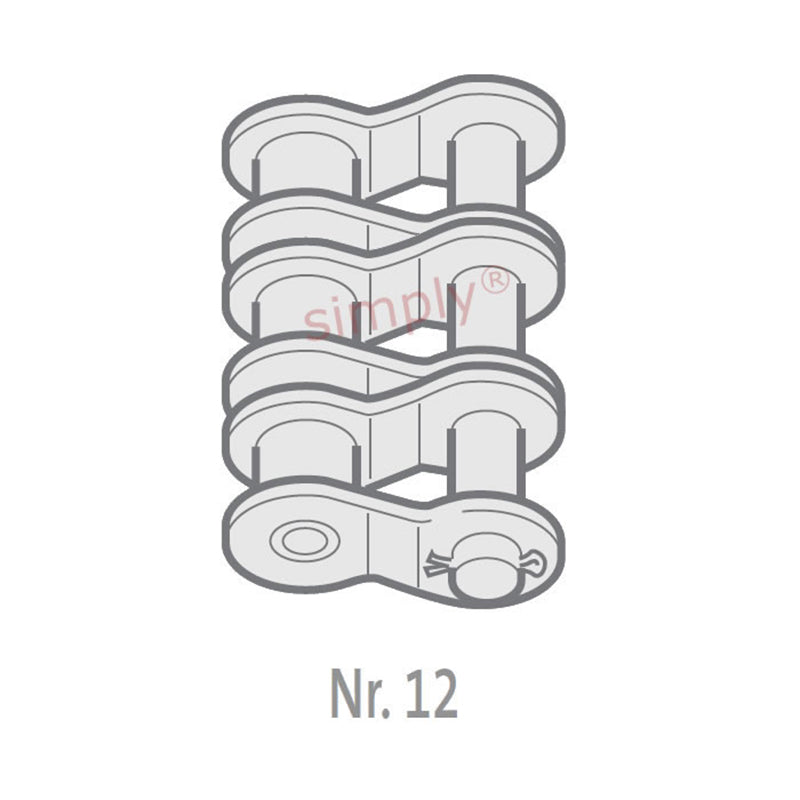

| Renold No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 15.75mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 24.1mm |
| Plate Width Inner max (E) | 3.1mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 7.92mm |
| Pin Length max (H1) | 90mm |
| Connecting Link Extension max (J) | 6.3mm |
| ISO606 Tensile Strength min | 166800 N |
| Weight | 29.29kg/m |
