SKU: 80-3-NO12-MB
Branded 80-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1 inch Pitch
Branded 80-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1 inch Pitch
Regular price
Rs. 1,189.29
Regular price
Sale price
Rs. 1,189.29
Taxes included.
Equivalent to: 80-3-OL
In stock
Price Break
10+
Rs. 1,058.47
19+
Rs. 999.00
29+
Rs. 987.11
39+
Rs. 975.22
49+
Rs. 963.32
74+
Rs. 951.43
99+
Rs. 891.97
199+
Rs. 880.07
249+
Rs. 868.18
499+
Rs. 856.29
999+
Rs. 832.50
Description
Description

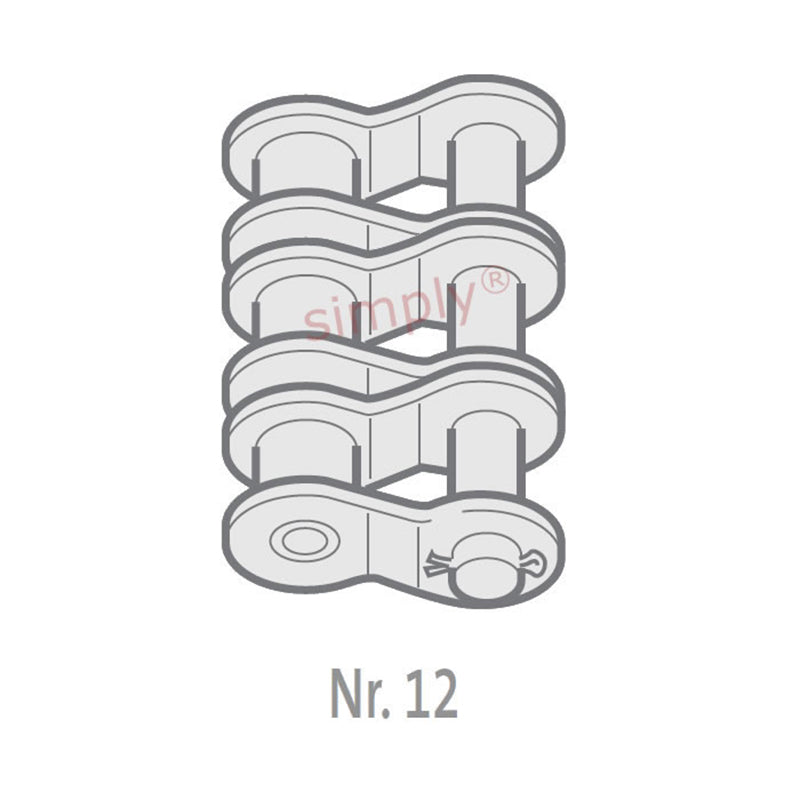

Branded OL / No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Equivalent: 80-3-OL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 15.75mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 24.1mm |
| Plate Width Inner max (E) | 3.1mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 7.92mm |
| Pin Length max (H1) | 90mm |
| Connecting Link Extension max (J) | 6.3mm |
| ISO606 Tensile Strength min | 166800 N |
| Weight | 29.29kg/m |
