SKU: 80-2-SD-NO11-RENOLD
Renold SD 80-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1 inch Pitch
Renold SD 80-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1 inch Pitch
Regular price
Rs. 1,975.77
ex VAT
Regular price
Sale price
Rs. 1,975.77
ex VAT
In stock
Price Break
10+
Rs. 1,758.44
19+
Rs. 1,659.65
29+
Rs. 1,639.89
39+
Rs. 1,620.13
49+
Rs. 1,600.37
74+
Rs. 1,580.62
99+
Rs. 1,481.83
199+
Rs. 1,462.07
249+
Rs. 1,442.31
499+
Rs. 1,422.55
999+
Rs. 1,383.04
Couldn't load pickup availability
Description
Description

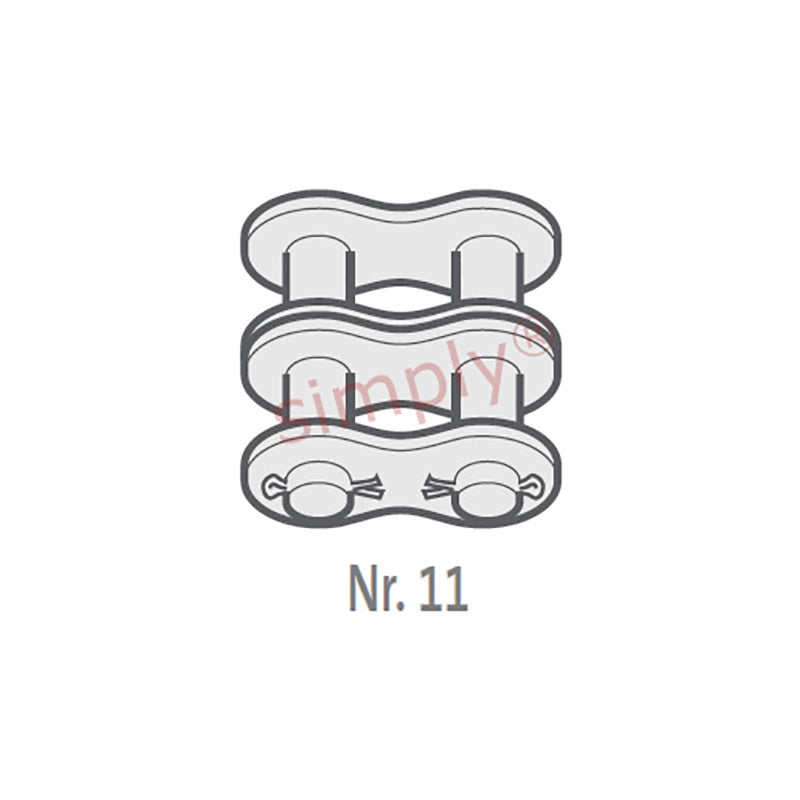

| Renold No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 15.75mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 24.1mm |
| Plate Width Inner max (E) | 3.1mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 7.92mm |
| Pin Length max (H2) | 61.9mm |
| Connecting Link Extension max (J) | 2.3mm |
| Transverse Pitch nom (K) | 29.29mm |
| ISO606 Tensile Strength min | 111200 N |
| Weight | 0.04kg/m |
