SKU: 80-2-NO26-MB
Branded 80-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 1 inch Pitch
Branded 80-2-NO26 ANSI / AS Duplex Chain Connecting Link With Spring Clip 1 inch Pitch
Regular price
Rs. 902.28
ex VAT
Regular price
Sale price
Rs. 902.28
ex VAT
Equivalent to: 80-2-CL
In stock
Price Break
10+
Rs. 803.03
19+
Rs. 757.92
29+
Rs. 748.89
39+
Rs. 739.87
49+
Rs. 730.85
74+
Rs. 721.82
99+
Rs. 676.71
199+
Rs. 667.69
249+
Rs. 658.66
499+
Rs. 649.64
999+
Rs. 631.60
Couldn't load pickup availability
Description
Description

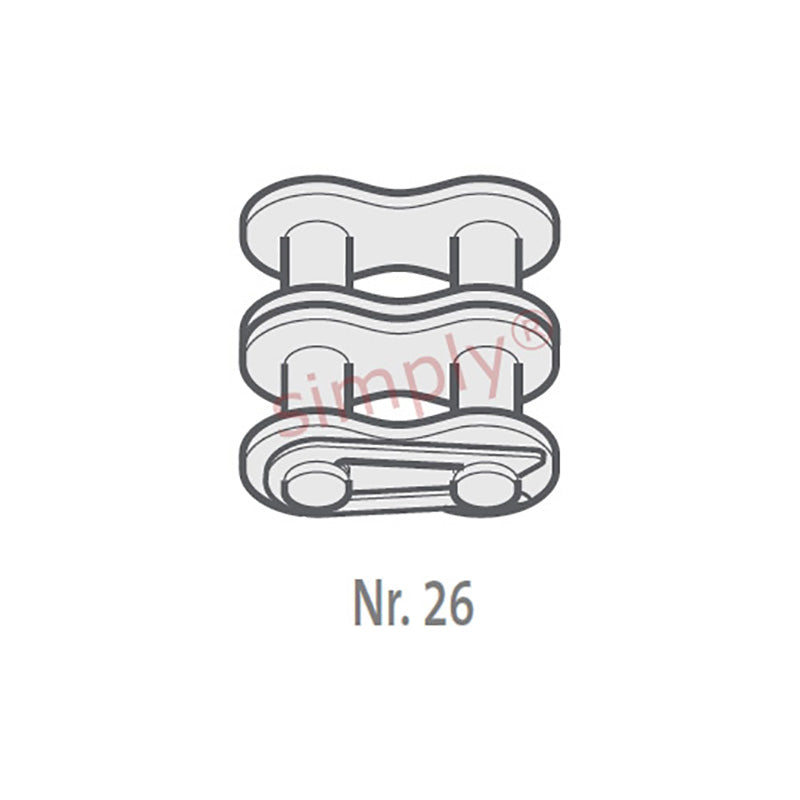

Branded CL / No. 26 ANSI Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
Equivalent: 80-2-CL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 15.75mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 24.1mm |
| Plate Width Inner max (E) | 3.1mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 7.92mm |
| Pin Length max (H2) | 61.9mm |
| Connecting Link Extension max (J) | 2.3mm |
| Transverse Pitch nom (K) | 29.29mm |
| ISO606 Tensile Strength min | 111200 N |
| Weight | 0.04kg/m |
