SKU: 7340BCBM-SKF

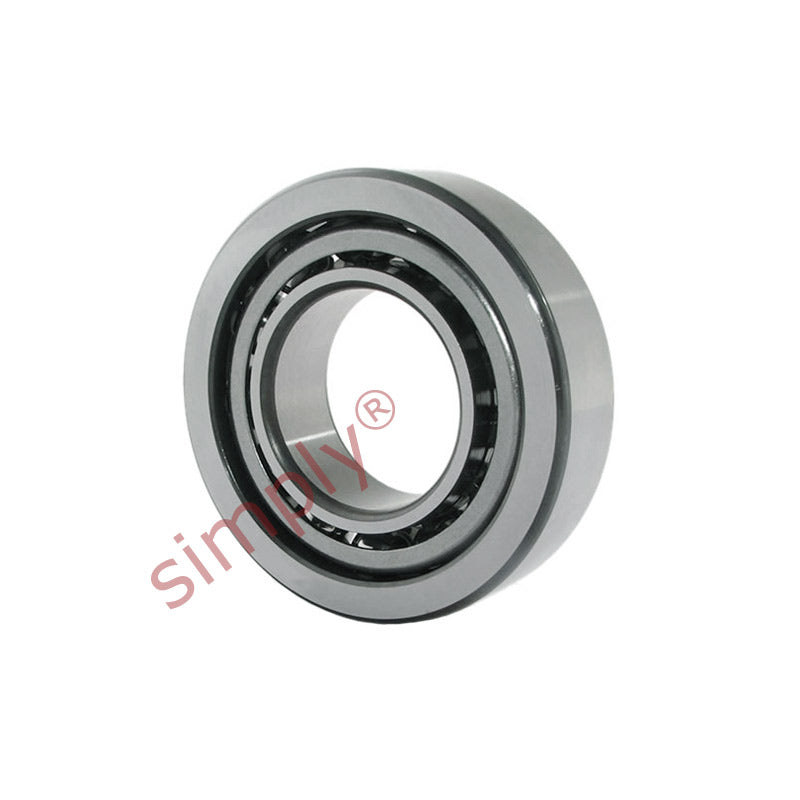

SKF 7340BCBM Single Row Angular Contact Ball Bearing 200x420x80mm
SKF 7340BCBM Single Row Angular Contact Ball Bearing 200x420x80mm
Regular price
Rs. 832,011.75
ex VAT
Regular price
Sale price
Rs. 832,011.75
ex VAT
Equivalent to: 7340BCBM
In stock
Price Break
2+
Rs. 790,411.16
5+
Rs. 748,810.58
10+
Rs. 707,209.99
15+
Rs. 665,609.40
20+
Rs. 648,969.17
30+
Rs. 632,328.93
50+
Rs. 549,127.76
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7340BCBM
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7340BCBM
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 200mm
- Outside Diameter:
- 420mm
- Width:
- 80mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 200mm |
|---|---|
| D | 420mm |
| B | 80mm |
| Dynamic load Cr | 462 kN |
| Static load Cor | 655 kN |
| Fatigue load limit Pu | 15.6 kN |
| Reference speed | 1800 rpm |
| Limit speed | 1800 rpm |
| Weight | 52.8 kg |
| d1 | 287mm |
| d2 | 247mm |
| D1 | 339.5mm |
| r1r2 min | 5mm |
| r3r4 min | 2mm |
| a | 170mm |
| da min | 220mm |
| Da max | 400mm |
| Db max | 409mm |
| ra max | 4mm |
| rb max | 2mm |
