SKU: 7318BECBY-SKF

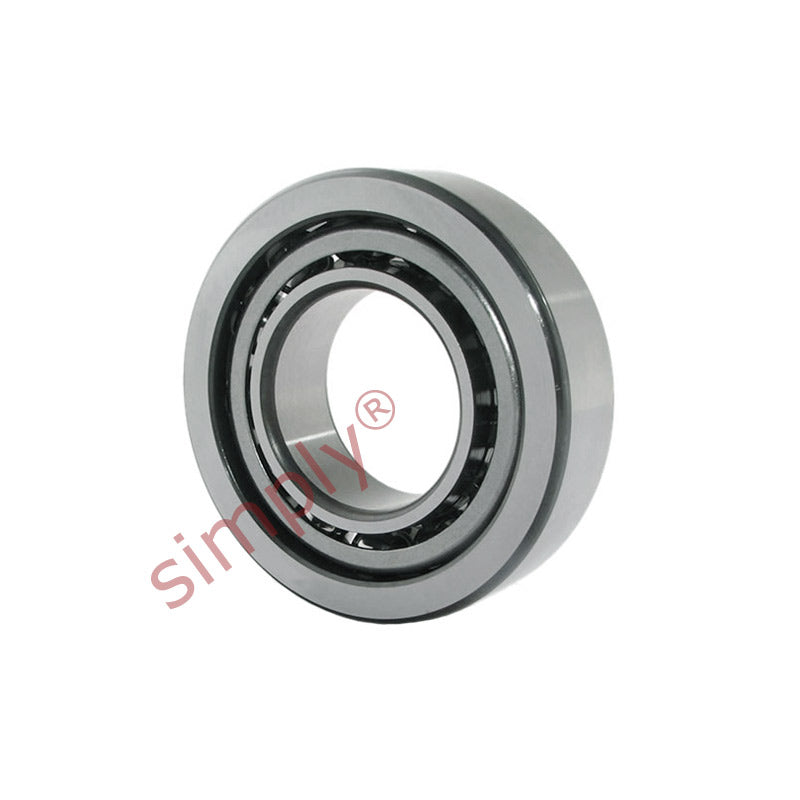

SKF 7318BECBY Single Row Angular Contact Ball Bearing 90x190x43mm
SKF 7318BECBY Single Row Angular Contact Ball Bearing 90x190x43mm
Regular price
Rs. 58,513.37
ex VAT
Regular price
Sale price
Rs. 58,513.37
ex VAT
Equivalent to: 7318BECBY
In stock
Price Break
10+
Rs. 52,076.90
19+
Rs. 49,151.23
29+
Rs. 48,566.10
39+
Rs. 47,980.96
49+
Rs. 47,395.83
74+
Rs. 46,810.70
99+
Rs. 43,885.03
199+
Rs. 43,299.89
249+
Rs. 42,714.76
499+
Rs. 42,129.63
999+
Rs. 40,959.36
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7318BECBY
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7318BECBY
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 190mm
- Width:
- 43mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 90mm |
|---|---|
| D | 190mm |
| B | 43mm |
| Dynamic load Cr | 165 kN |
| Static load Cor | 146 kN |
| Fatigue load limit Pu | 5.2 kN |
| Reference speed | 4000 rpm |
| Limit speed | 4000 rpm |
| Weight | 5.22 kg |
| d1 | 129.2mm |
| d2 | 109mm |
| D1 | 153.1mm |
| r1r2 min | 3mm |
| r3r4 min | 1.1mm |
| a | 80mm |
| da min | 104mm |
| Da max | 176mm |
| Db max | 183mm |
| ra max | 2.5mm |
| rb max | 1mm |
