SKU: 7308BEP-SKF

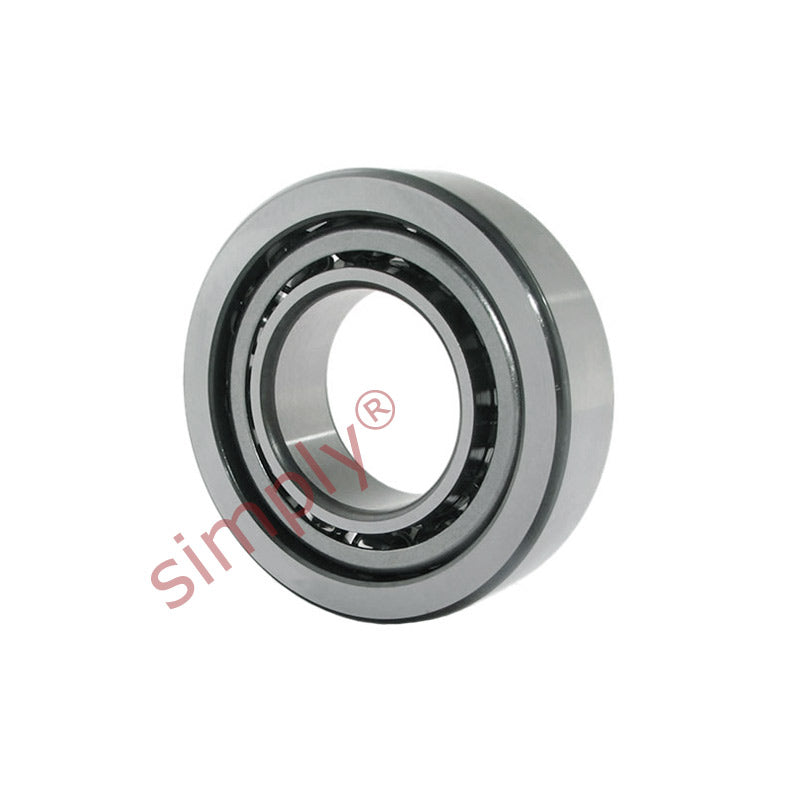

SKF 7308BEP Single Row Angular Contact Ball Bearing 40x90x23mm
SKF 7308BEP Single Row Angular Contact Ball Bearing 40x90x23mm
Regular price
Rs. 6,564.95
ex VAT
Regular price
Sale price
Rs. 6,564.95
ex VAT
Equivalent to: 7308BEP
In stock
Price Break
10+
Rs. 5,842.81
19+
Rs. 5,514.56
29+
Rs. 5,448.91
39+
Rs. 5,383.26
49+
Rs. 5,317.61
74+
Rs. 5,251.96
99+
Rs. 4,923.71
199+
Rs. 4,858.06
249+
Rs. 4,792.41
499+
Rs. 4,726.76
999+
Rs. 4,595.47
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7308BEP
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7308BEP
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 40mm |
|---|---|
| D | 90mm |
| B | 23mm |
| Dynamic load Cr | 46.2 kN |
| Static load Cor | 30.5 kN |
| Fatigue load limit Pu | 1.13 kN |
| Reference speed | 9000 rpm |
| Limit speed | 9000 rpm |
| Weight | 0.61 kg |
| d1 | 59.7mm |
| d2 | 49.6mm |
| D1 | 71.6mm |
| r1r2 min | 1.5mm |
| r3r4 min | 1mm |
| a | 39mm |
| da min | 49mm |
| Da max | 81mm |
| Db max | 84.4mm |
| ra max | 1.5mm |
| rb max | 1mm |
