SKU: 7230BCBM-SKF

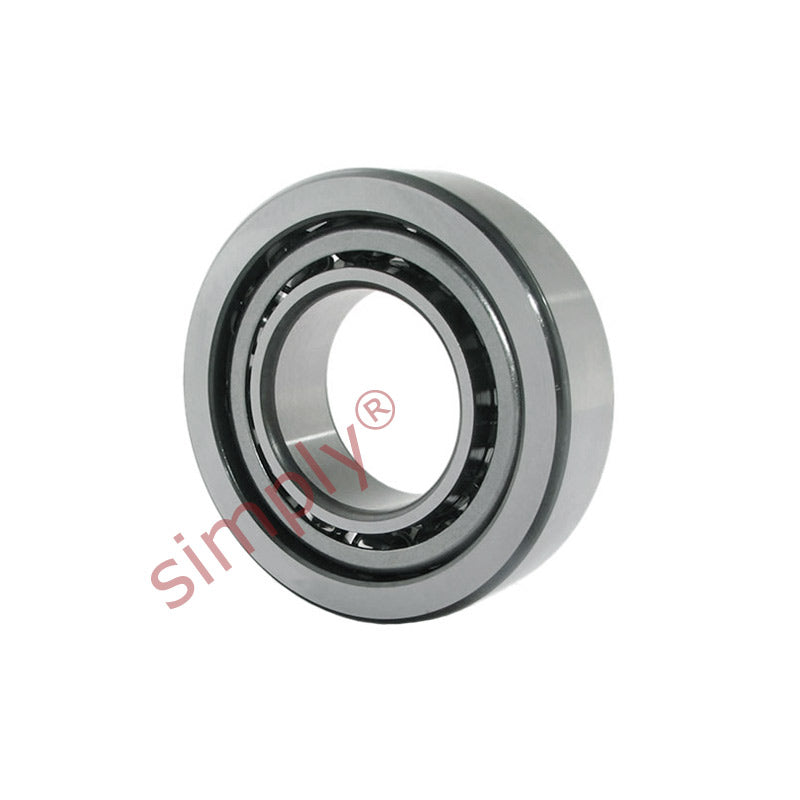

SKF 7230BCBM Single Row Angular Contact Ball Bearing 150x270x45mm
SKF 7230BCBM Single Row Angular Contact Ball Bearing 150x270x45mm
Regular price
Rs. 148,402.73
ex VAT
Regular price
Sale price
Rs. 148,402.73
ex VAT
Equivalent to: 7230BCBM
In stock
Price Break
10+
Rs. 132,078.43
19+
Rs. 124,658.29
29+
Rs. 123,174.27
39+
Rs. 121,690.24
49+
Rs. 120,206.21
74+
Rs. 118,722.18
99+
Rs. 111,302.05
199+
Rs. 109,818.02
249+
Rs. 108,333.99
499+
Rs. 106,849.97
999+
Rs. 103,881.91
Couldn't load pickup availability
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7230BCBM
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7230BCBM
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 150mm
- Outside Diameter:
- 270mm
- Width:
- 45mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 150mm |
|---|---|
| D | 270mm |
| B | 45mm |
| Dynamic load Cr | 216 kN |
| Static load Cor | 240 kN |
| Fatigue load limit Pu | 6.95 kN |
| Reference speed | 2600 rpm |
| Limit speed | 2800 rpm |
| Weight | 10.8 kg |
| d1 | 197.2mm |
| d2 | 175.6mm |
| D1 | 226mm |
| r1r2 min | 3mm |
| r3r4 min | 1.1mm |
| a | 111mm |
| da min | 164mm |
| Da max | 256mm |
| Db max | 263mm |
| ra max | 2.5mm |
| rb max | 1mm |
