SKU: 7226BM-SKF

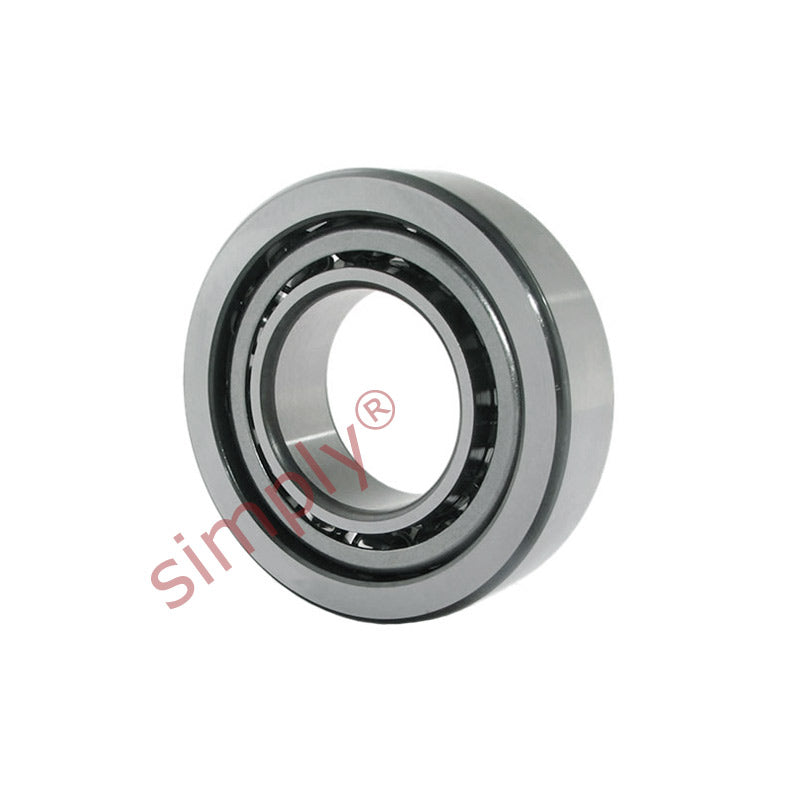

SKF 7226BM Single Row Angular Contact Ball Bearing 130x230x40mm
SKF 7226BM Single Row Angular Contact Ball Bearing 130x230x40mm
Regular price
Rs. 101,128.43
Regular price
Sale price
Rs. 101,128.43
Taxes included.
Equivalent to: 7226BM
In stock
Price Break
10+
Rs. 90,004.30
19+
Rs. 84,947.88
29+
Rs. 83,936.60
39+
Rs. 82,925.31
49+
Rs. 81,914.03
74+
Rs. 80,902.74
99+
Rs. 75,846.32
199+
Rs. 74,835.04
249+
Rs. 73,823.75
499+
Rs. 72,812.47
999+
Rs. 70,789.90
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7226BM
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7226BM
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 230mm
- Width:
- 40mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 130mm |
|---|---|
| D | 230mm |
| B | 40mm |
| Dynamic load Cr | 186 kN |
| Static load Cor | 193 kN |
| Fatigue load limit Pu | 6.1 kN |
| Reference speed | 3200 rpm |
| Limit speed | 3400 rpm |
| Weight | 6.76 kg |
| d1 | 169mm |
| d2 | 149.6mm |
| D1 | 192.6mm |
| r1r2 min | 3mm |
| r3r4 min | 1.1mm |
| a | 96mm |
| da min | 144mm |
| Da max | 216mm |
| Db max | 222mm |
| ra max | 2.5mm |
| rb max | 1mm |
