SKU: 7220BEP-SKF

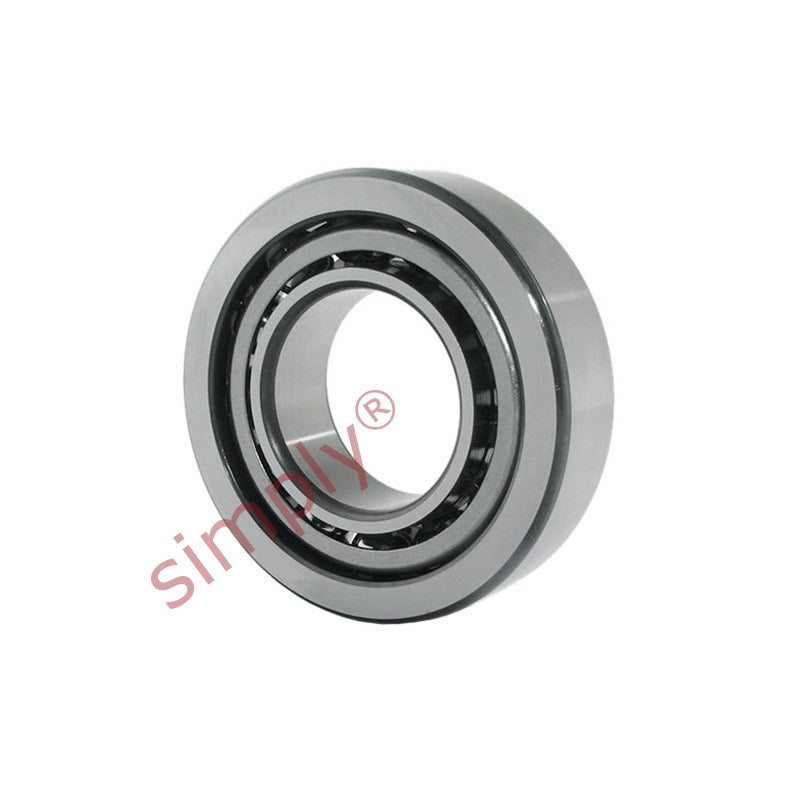

SKF 7220BEP Single Row Angular Contact Ball Bearing 100x180x34mm
SKF 7220BEP Single Row Angular Contact Ball Bearing 100x180x34mm
Regular price
Rs. 34,882.55
Regular price
Sale price
Rs. 34,882.55
Taxes included.
Equivalent to: 7220BEP
In stock
Price Break
10+
Rs. 31,045.47
19+
Rs. 29,301.34
29+
Rs. 28,952.52
39+
Rs. 28,603.69
49+
Rs. 28,254.87
74+
Rs. 27,906.04
99+
Rs. 26,161.91
199+
Rs. 25,813.09
249+
Rs. 25,464.26
499+
Rs. 25,115.44
999+
Rs. 24,417.79
Description
Description
SKF Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7220BEP
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Equivalent: 7220BEP
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 180mm
- Width:
- 34mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 100mm |
|---|---|
| D | 180mm |
| B | 34mm |
| Dynamic load Cr | 135 kN |
| Static load Cor | 122 kN |
| Fatigue load limit Pu | 4.4 kN |
| Reference speed | 4000 rpm |
| Limit speed | 4000 rpm |
| Weight | 3.29 kg |
| d1 | 131mm |
| d2 | 115.2mm |
| D1 | 150.9mm |
| r1r2 min | 2.1mm |
| r3r4 min | 1.1mm |
| a | 76mm |
| da min | 112mm |
| Da max | 168mm |
| Db max | 173mm |
| ra max | 2mm |
| rb max | 1mm |
