SKU: 71804-LLB-END

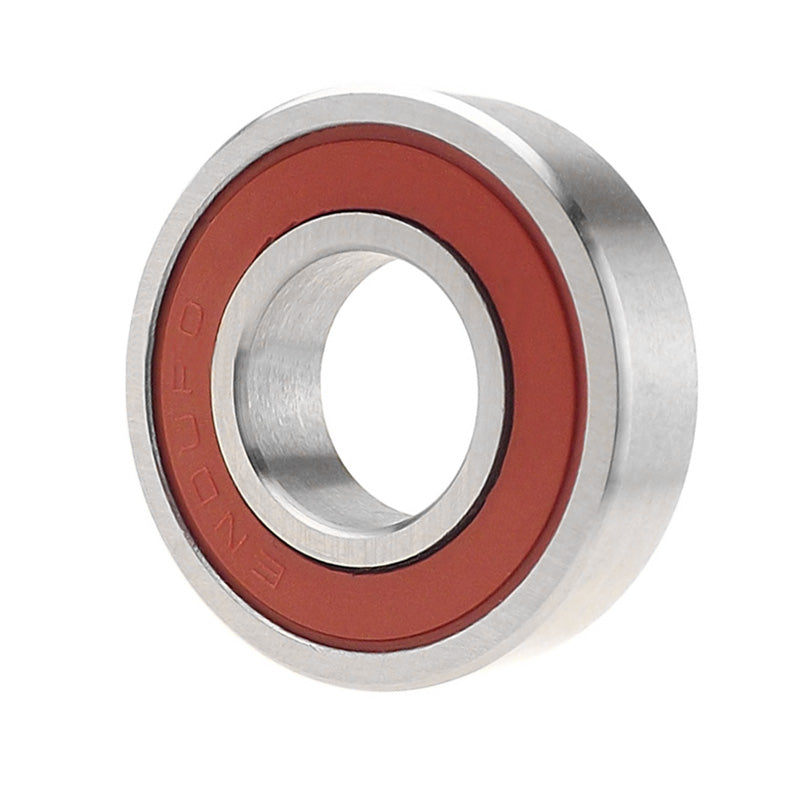

ENDURO 71804LLB-ABEC5 Angular Contact Ball Bearing with Low Friction Seals 20x32x7mm
Equivalent to: 71804LLB-ABEC5 71804LLBABEC5 71804RS2ABEC5 718042RS2ABEC5
In stock
Price Break
Description
Enduro Angular Contact Rubber Sealed Deep Groove Ball Bearings: These are special angular contact type bearings recommended to be used only with a hub or component designed for their usage. It is important to fit them in pairs and the correct way around, the seals on each side are different colours and the inner races are different diameters on either side, the larger diameter inner race is always the side to be under load, the smaller diameter should face each other in most installations. There should be a spacer tube between the bearings to preset any pre-load on the bearings, if there is no spacer it is important not to overtightened the bearings together as this will damage them. |
Note: These bearings may feature 'C3' on the box, this is not in reference to internal clearance and is a manufacturer code.
Equivalent: 71804LLB-ABEC5 71804LLBABEC5 71804RS2ABEC5 718042RS2ABEC5
- Brand / Quality:
- Enduro - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 32mm
- Width:
- 7mm
- Seals / Shields:
- Low Friction
Technical
| Inside Diameter | 20mm |
|---|---|
| Outside Diameter | 32mm |
| Width | 7mm |
| Static Load | 2.242 kN |
| Weight | 16.4 g |
