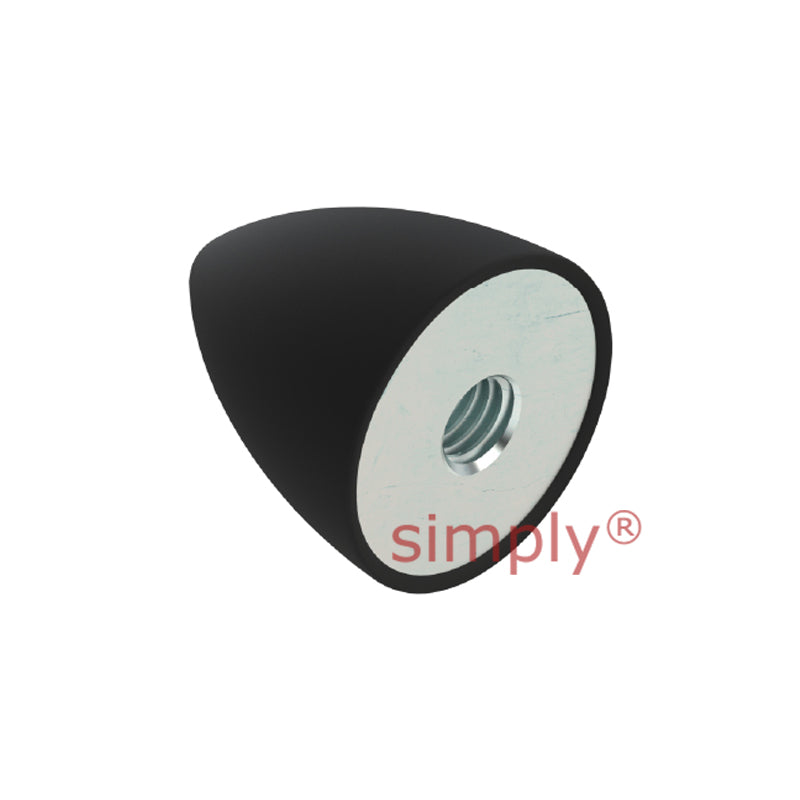

High-Performance Female Rubber Cone Bump Stop 40x30mm M8 Thread
High-Performance Female Rubber Cone Bump Stop 40x30mm M8 Thread
Regular price
Rs. 778.80
ex VAT
Regular price
Sale price
Rs. 778.80
ex VAT
In stock
Price Break
10+
Rs. 693.13
19+
Rs. 654.19
29+
Rs. 646.40
39+
Rs. 638.62
49+
Rs. 630.83
74+
Rs. 623.04
99+
Rs. 584.10
199+
Rs. 576.31
249+
Rs. 568.52
499+
Rs. 560.74
999+
Rs. 545.16
Couldn't load pickup availability
Description
Description
Female Conical Buffer: These female anti-vibration conical buffers (also known as Parabolic Buffers) represent an ideal low-cost solution to your vibration dampening requirements. The innovative design of these mountings provides a progressive stiffness so that under extreme levels of deformation, the energy of the shock is absorbed gradually and the equipment is protected. Constructed of Bright Zinc plated corrosion resistant steel sandwiched between natural shock-absorbing rubber.
Rohs: Compliant as standard.
Benefits: Excellent anti-vibration and dampening properties, low cost, a wide range of sizes available, other materials on request.
- Brand / Quality:
- Simply AV Mounts
- Thread Size:
- M8
- Outside Diameter:
- 40mm
- Length:
- 30mm
- Material:
- Bright Zinc Plated Steel
Technical
Technical
| D | 40mm |
|---|---|
| D1 | M8 |
| L | 30mm |
| T | 8mm |
| Temperature Range | -30 deg C to +80 deg C |
| Hardness | 55 Shore A Hardness |
| Weight | 0.05 kg |
| Nuts | <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M8+steel+nut">M8 Click Here</a> |
| Set Screws | <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M8+set+screw">M8 Click Here</a> |
