SKU: 7014CE/P4ADGA.GMM1.SINGLE

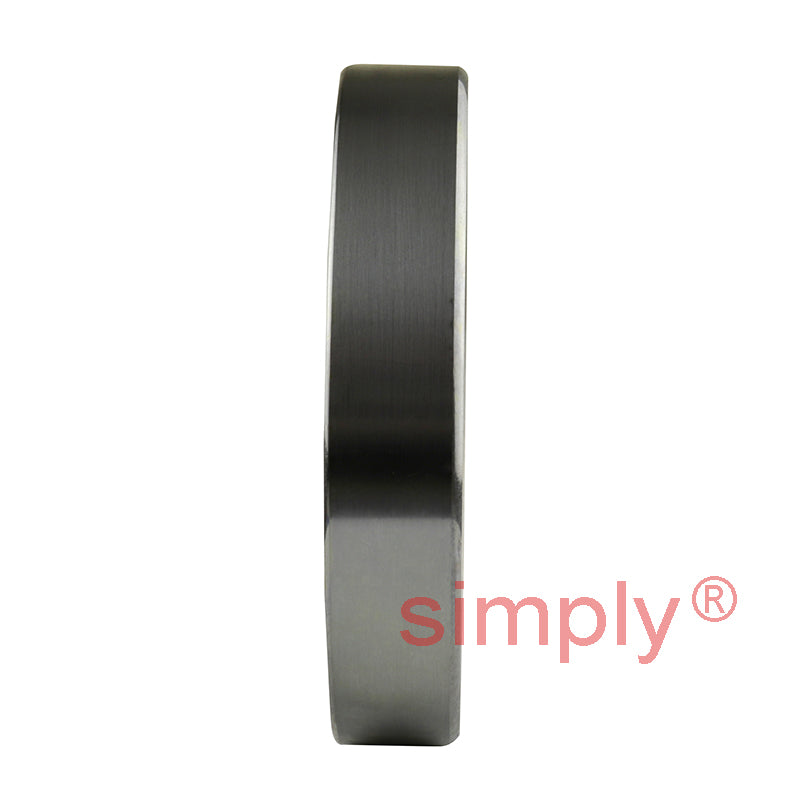

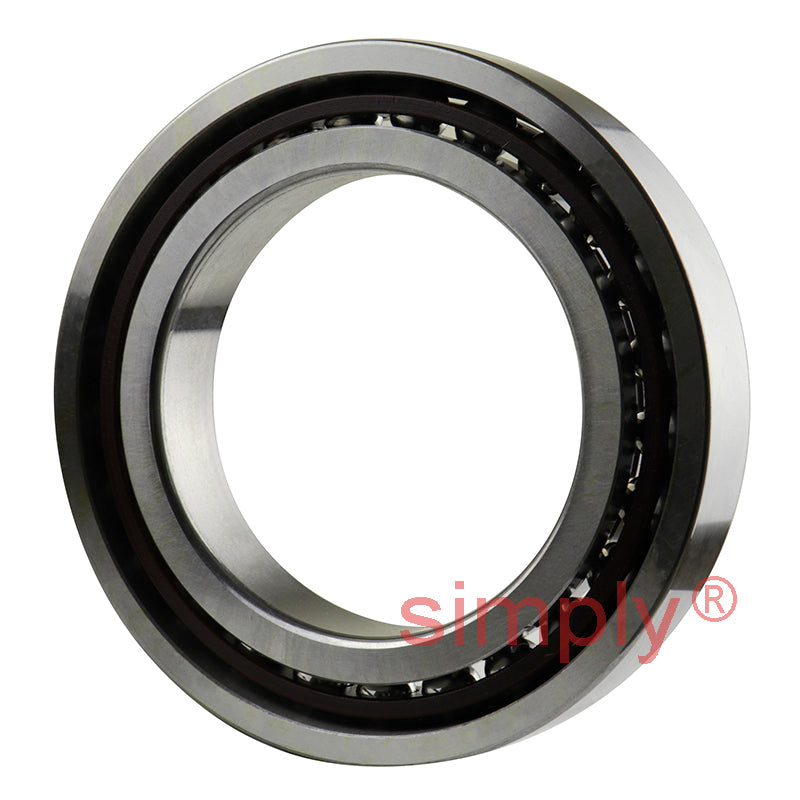

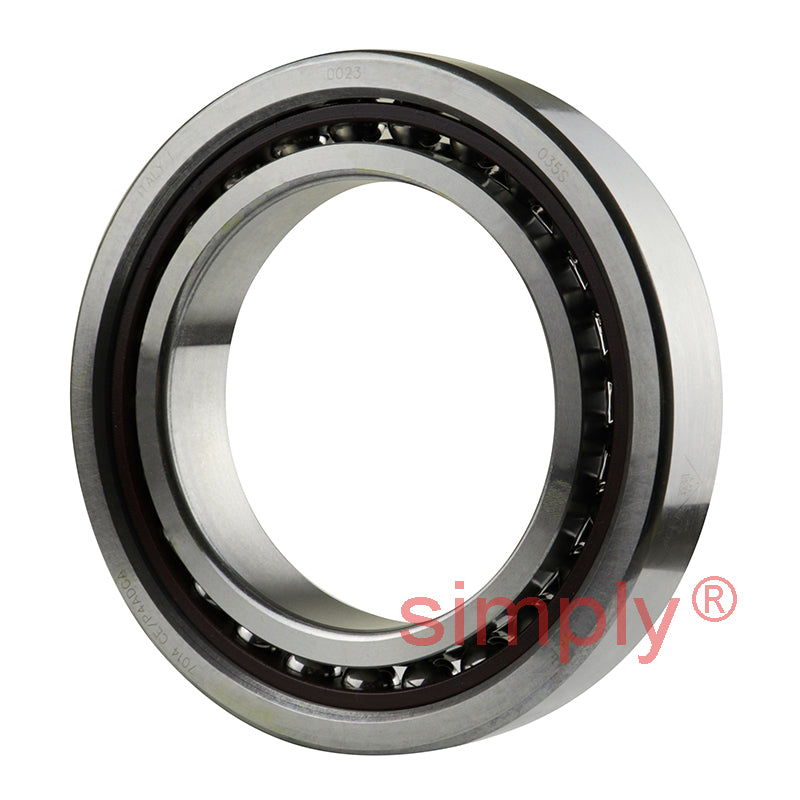

SKF 7014CE/P4ADGA.GMM1 Ungreased Angular Contact Ball Single Bearing 70x110x20mm
SKF 7014CE/P4ADGA.GMM1 Ungreased Angular Contact Ball Single Bearing 70x110x20mm
Regular price
Rs. 28,244.78
Regular price
Sale price
Rs. 28,244.78
Taxes included.
In stock
Price Break
10+
Rs. 25,137.85
19+
Rs. 23,725.62
29+
Rs. 23,443.17
39+
Rs. 23,160.72
49+
Rs. 22,878.27
74+
Rs. 22,595.82
99+
Rs. 21,183.59
199+
Rs. 20,901.14
249+
Rs. 20,618.69
499+
Rs. 20,336.24
999+
Rs. 19,771.35
Description
Description
Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Note: Load is applied in the direction of the inner raceways largest diameter (one side will be smaller than the other in diameter), in smaller bearings this is difficult to check, in these cases the thrust is applied from the side where the bearing number markings are not present.
Note: Due to differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Load is applied in the direction of the inner raceways largest diameter (one side will be smaller than the other in diameter), in smaller bearings this is difficult to check, in these cases the thrust is applied from the side where the bearing number markings are not present.
Note: Due to differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 110mm
- Width:
- 20mm

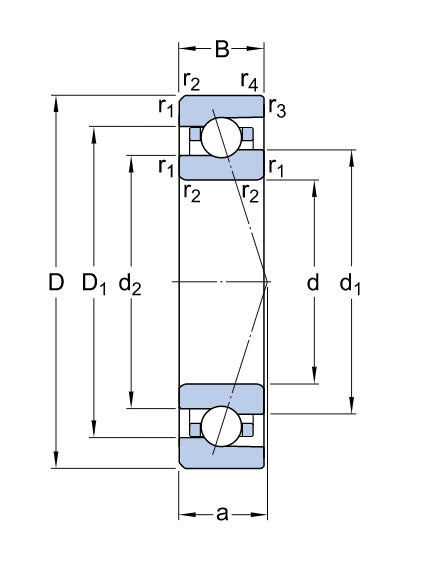

Technical
Technical
| d | 70mm |
|---|---|
| D | 110mm |
| B | 20mm |
| d1 | 84.3mm |
| d2 | 81.6mm |
| D1 | 95.32 |
| r1,2 | min,1.1mm |
| r3,4 | min,0.6mm |
| a | 22.2mm |
