SKU: 7009CTRDUMP3 PAIR

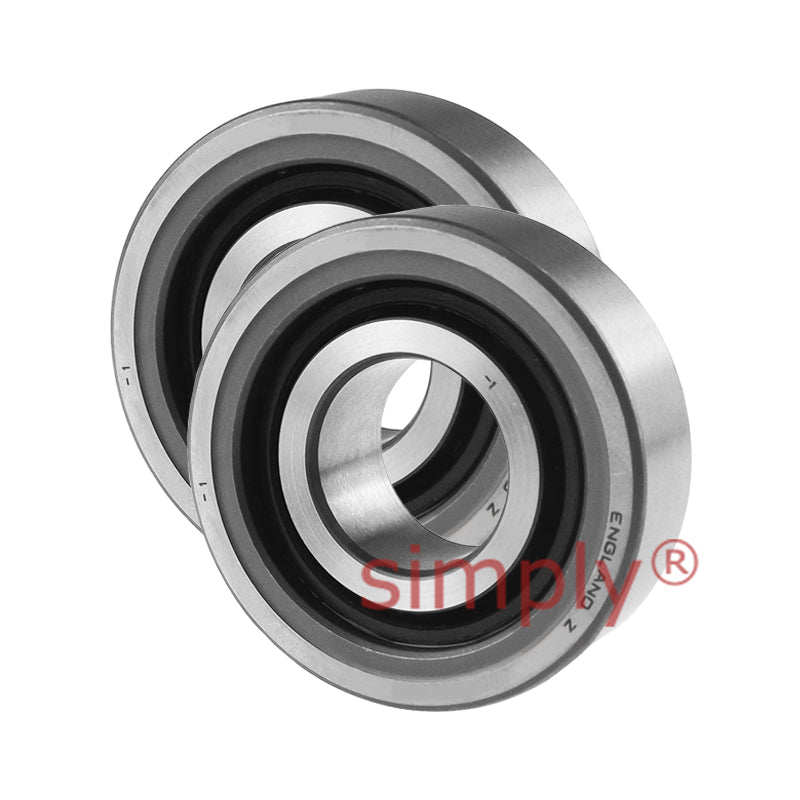

FAG 7009CTRDUMP3 PAIR Super Precision Angular Contact Ball Bearings 45x75x16mm
FAG 7009CTRDUMP3 PAIR Super Precision Angular Contact Ball Bearings 45x75x16mm
Regular price
Rs. 27,029.88
Regular price
Sale price
Rs. 27,029.88
Taxes included.
In stock
Price Break
10+
Rs. 24,056.59
19+
Rs. 22,705.10
29+
Rs. 22,434.80
39+
Rs. 22,164.50
49+
Rs. 21,894.20
74+
Rs. 21,623.90
99+
Rs. 20,272.41
199+
Rs. 20,002.11
249+
Rs. 19,731.81
499+
Rs. 19,461.51
999+
Rs. 18,920.92
Description
Description
Pair Precision Angular Contact Bearings: Spindle bearings are super precision single row angular contact ball bearings with solid outer and inner rings, ball and cage assemblies and solid window cages.
Benefits: Due to their very narrow tolerances, the spindle bearings are particularly suitable for applications involving the highest requirements for guidance accuracy, such as bearing arrangements for main spindles in machine tools.
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 75mm
- Width:
- 16mm
- Seals / Shields:
- None
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 45mm |
| D | 75mm |
| B | 16mm |
| r<sub>min</sub> | 1mm |
| r1<sub>min</sub> | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 24.3Kn |
| C<sub>or</sub> | 18.3kN |
| Axial load Kn | 14.5 kN |
| Contact angle | 25 degrees |
| Effective diameter | 22mm |
