SKU: 7004.B.2RS.TVP.FAG

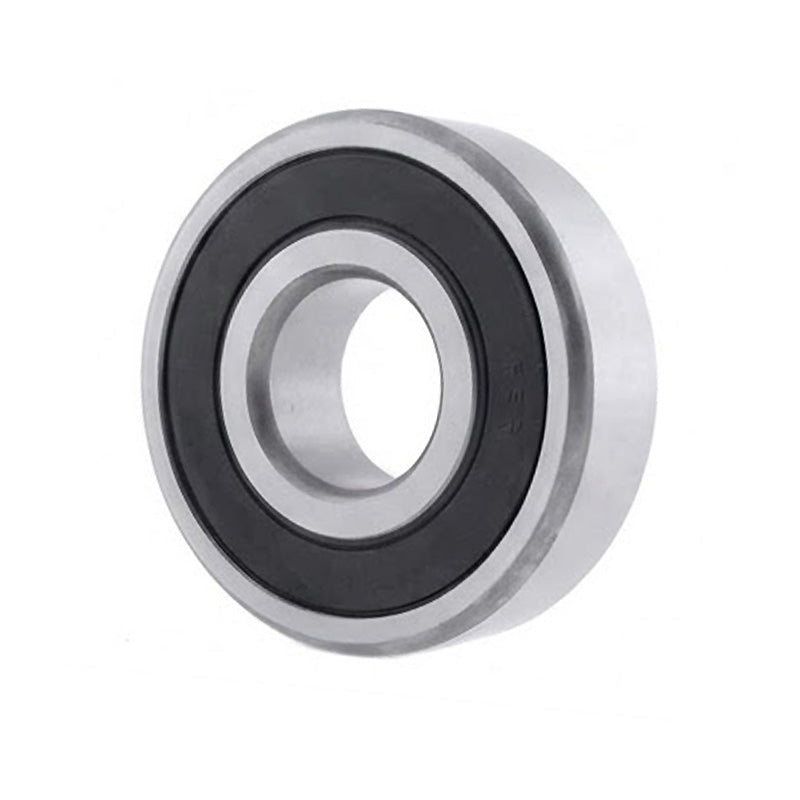

FAG 7004B2RSTVP Rubber Sealed Single Row Angular Contact Ball Bearing 20x42x12mm
FAG 7004B2RSTVP Rubber Sealed Single Row Angular Contact Ball Bearing 20x42x12mm
Regular price
Rs. 7,644.00
Regular price
Sale price
Rs. 7,644.00
Taxes included.
In stock
Price Break
10+
Rs. 6,803.16
19+
Rs. 6,420.96
29+
Rs. 6,344.52
39+
Rs. 6,268.08
49+
Rs. 6,191.64
74+
Rs. 6,115.20
99+
Rs. 5,733.00
199+
Rs. 5,656.56
249+
Rs. 5,580.12
499+
Rs. 5,503.68
999+
Rs. 5,350.80
Description
Description
Rubber Sealed Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity. Fitted with rubber seals these bearings require little or no maintenance as the pre filled lubricant is retained by the seals.
Note: Load is applied in the direction of the inner raceways largest diameter (one side will be smaller than the other in diameter), in smaller bearings this is difficult to check, in these cases the thrust is applied from the side where the bearing number markings are not present.
Note 2: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Note: Load is applied in the direction of the inner raceways largest diameter (one side will be smaller than the other in diameter), in smaller bearings this is difficult to check, in these cases the thrust is applied from the side where the bearing number markings are not present.
Note 2: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 20mm |
|---|---|
| D | 42mm |
| B | 12mm |
| r1r2 min | 0.5mm |
| r3r4 min | 0.3mm |
| Dynamic Load | 4.893 kN |
| Static Load | 2.202 kN |
| Weight | 0.022kg |
