SKU: 7002CTRDULP4-NSK

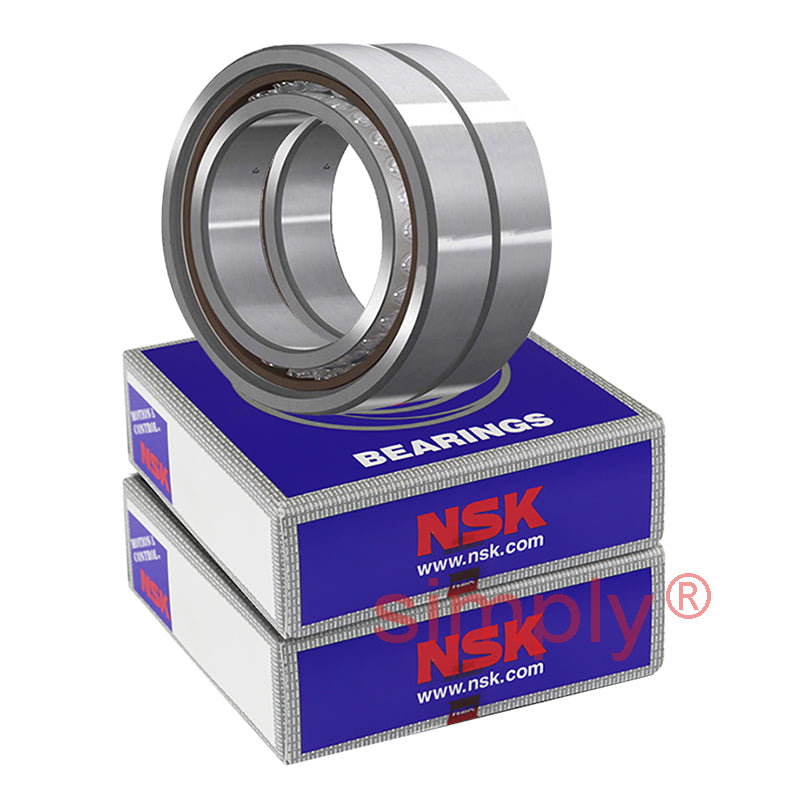

NSK 7002CTRDULP4 Super Precision Angular Contact Spindle Bearing 15x32x9mm (Set of 2)

NSK 7002CTRDULP4 Super Precision Angular Contact Spindle Bearing 15x32x9mm (Set of 2)
Regular price Rs. 23,856.30
Regular price Sale price Rs. 23,856.30
Sale Sold out
Taxes included.

In stock

Price Break
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 15mm
D 32mm
B 9mm
r<sub>min</sub> 0.3mm
r1<sub>min</sub> 0.15mm
--- Loads angles and speeds
C<sub>r</sub> 6.55Kn
C<sub>or</sub> 3.4kN
Axial load Kn 2.63 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 14.1
Effective diameter 7.6mm
Max speed in grease 49000 rpm
Max speed in oil 74500 rpm
--- Fitting dimensions
d<sub>a min</sub> 17.5mm
D<sub>a max</sub> 29.5mm
D<sub>b max</sub> 30.8mm
r<sub>a max</sub> 0.3mm
r<sub>b max</sub> 0.15mm
Weight 0.06kg
