SKU: 7002-EU

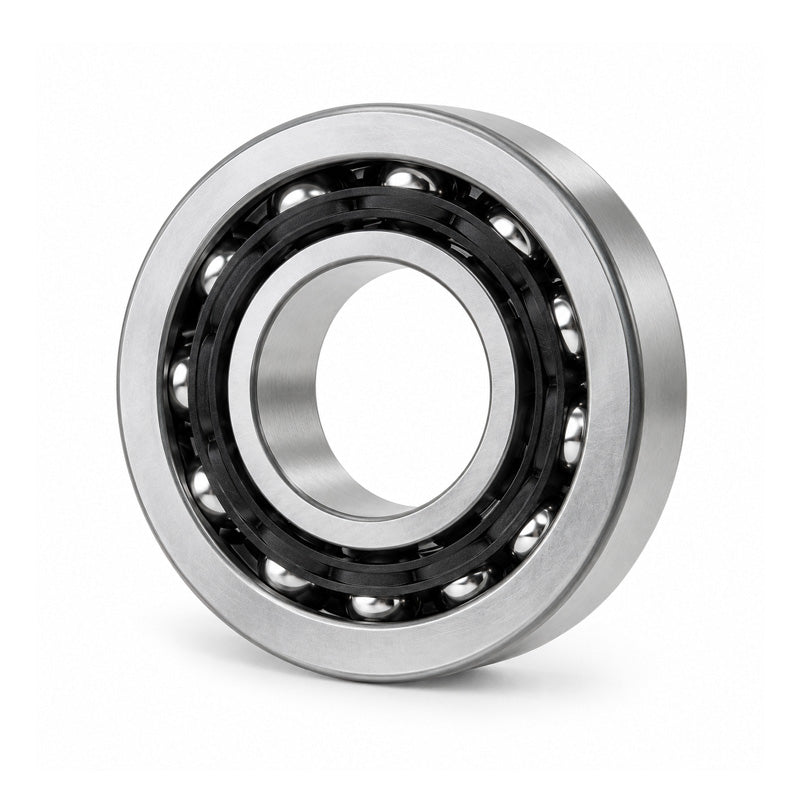

Budget 7002 Single Row Angular Contact Open Ball Bearing 15x32x9mm
Budget 7002 Single Row Angular Contact Open Ball Bearing 15x32x9mm
Regular price
Rs. 1,490.54
ex VAT
Regular price
Sale price
Rs. 1,490.54
ex VAT
Equivalent to: 7002B 7102
In stock
Price Break
10+
Rs. 1,326.58
19+
Rs. 1,252.05
29+
Rs. 1,237.15
39+
Rs. 1,222.24
49+
Rs. 1,207.34
74+
Rs. 1,192.43
99+
Rs. 1,117.91
199+
Rs. 1,103.00
249+
Rs. 1,088.09
499+
Rs. 1,073.19
999+
Rs. 1,043.38
Couldn't load pickup availability
Description
Description
Single Row Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load bearing capacity.
Note: Load is applied in the direction of the inner raceways largest diameter (one side will be smaller than the other in diameter), in smaller bearings this is difficult to check, in these cases the thrust is applied from the side where the bearing number markings are not present.
Note: Due to differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Equivalent: 7002B 7102
Note: Load is applied in the direction of the inner raceways largest diameter (one side will be smaller than the other in diameter), in smaller bearings this is difficult to check, in these cases the thrust is applied from the side where the bearing number markings are not present.
Note: Due to differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Equivalent: 7002B 7102
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 32mm
- Width:
- 9mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 15mm |
|---|---|
| D | 32mm |
| B | 9mm |
| r1 | 0.5mm |
| r2 | 0.3mm |
| Dynamic load | 6.228 kN |
| Static load | 3.381 kN |
| Weight | 0.035 kg |
