SKU: 6948-NTN

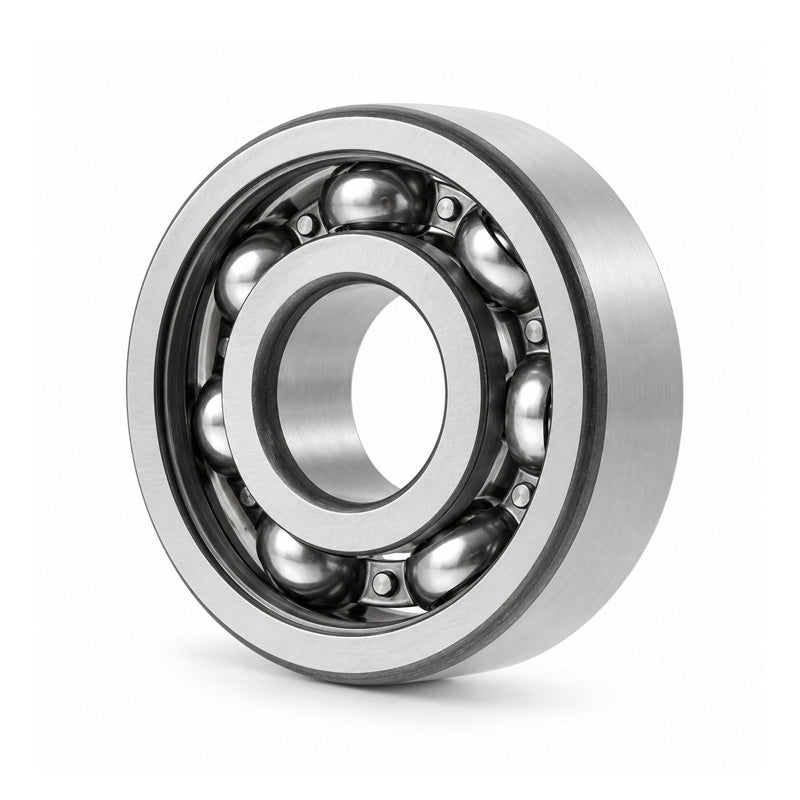

NTN 6948 Open Type Deep Groove Ball Bearing 240x320x38mm
NTN 6948 Open Type Deep Groove Ball Bearing 240x320x38mm
Regular price
Rs. 121,590.95
Regular price
Sale price
Rs. 121,590.95
Taxes included.
Equivalent to: 6948CM 61948CM 9348K 61948 61948S AY240
In stock
Price Break
10+
Rs. 108,215.95
19+
Rs. 102,136.40
29+
Rs. 100,920.49
39+
Rs. 99,704.58
49+
Rs. 98,488.67
74+
Rs. 97,272.76
99+
Rs. 91,193.21
199+
Rs. 89,977.30
249+
Rs. 88,761.39
499+
Rs. 87,545.48
999+
Rs. 85,113.67
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6948CM 61948CM 9348K 61948 61948S AY240
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 240mm
- Outside Diameter:
- 320mm
- Width:
- 38mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 240mm |
| D | 320mm |
| B | 38mm |
| r<sub>s</sub> min | 2.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 188 kN |
| C<sub>or</sub> | 203 kN |
| C<sub>u</sub> | 8.05 kN |
| f<sub>0</sub> | 16.5 kN |
| Grease | 1800 rpm |
| Oil | 2100 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 251mm |
| D<sub>a</sub> Max. | 309mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 8.28 kg |
