SKU: 6919ZZ/2AS-NTN

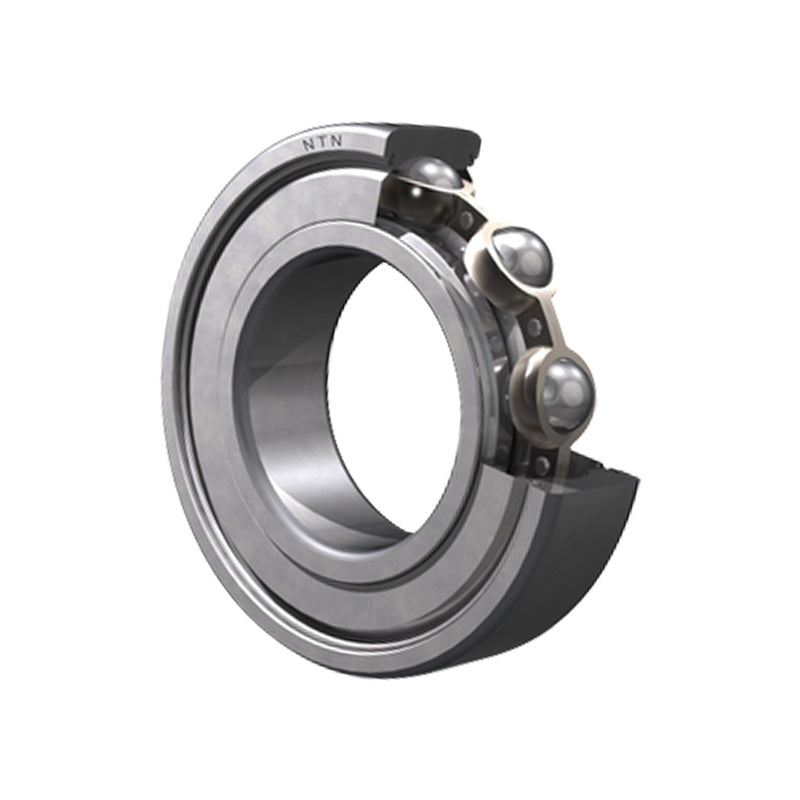

NTN 6919ZZ/2AS Metal Shielded Type Deep Groove Ball Bearing 95x130x18mm
Equivalent to: 6919ZZCM 61919ZZCM 6919ZZ 61919ZZ 6919ZZ 69192Z 6919ZZ 69192ZR 6919ZZE 6919FF 6919DD 6919DDC 6919KDDC EL952Z EL95ZZ 9119KDD 9119FF 119KSFF 773L19 6119PP
In stock
Price Break
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Equivalent: 6919ZZCM 61919ZZCM 6919ZZ 61919ZZ 6919ZZ 69192Z 6919ZZ 69192ZR 6919ZZE 6919FF 6919DD 6919DDC 6919KDDC EL952Z EL95ZZ 9119KDD 9119FF 119KSFF 773L19 6119PP
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 130mm
- Width:
- 18mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 95mm |
| D | 130mm |
| B | 18mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 37.5 kN |
| C<sub>or</sub> | 33.5 kN |
| C<sub>u</sub> | 2.1 kN |
| f<sub>0</sub> | 16.6 kN |
| Grease | 4800 rpm |
| Oil | 5700 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 101.5mm |
| d<sub>a</sub> Max. | 104mm |
| D<sub>a</sub> Max. | 123.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.579 kg |
