SKU: 6913-NSK

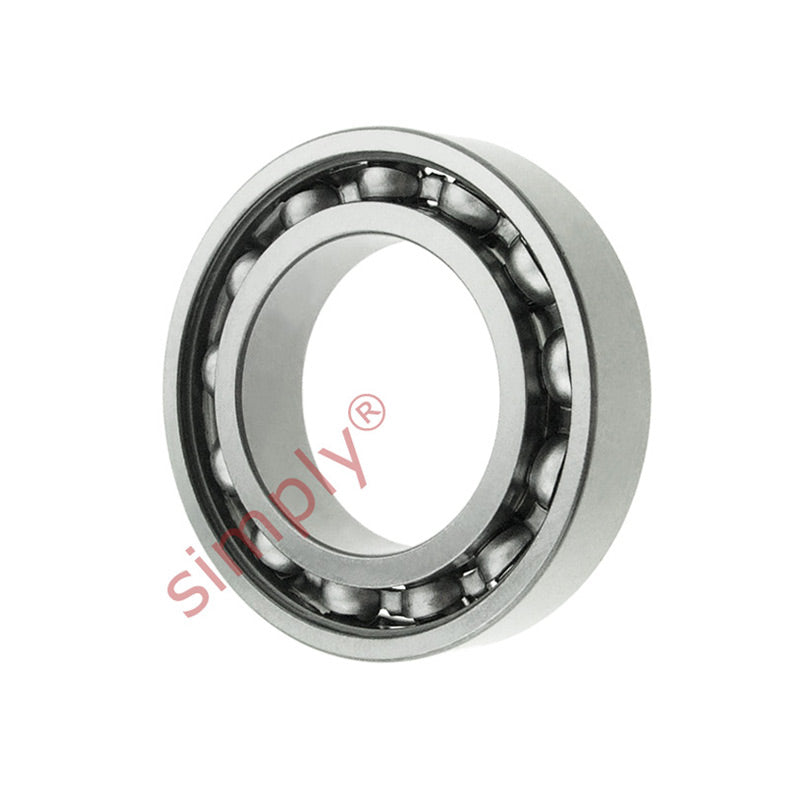

NSK 6913 Thin Section Open Type Deep Groove Ball Bearing 65x90x13mm
NSK 6913 Thin Section Open Type Deep Groove Ball Bearing 65x90x13mm
Regular price
Rs. 12,122.10
Regular price
Sale price
Rs. 12,122.10
Taxes included.
Equivalent to: 61913
In stock
Price Break
10+
Rs. 10,788.67
19+
Rs. 10,182.56
29+
Rs. 10,061.34
39+
Rs. 9,940.12
49+
Rs. 9,818.90
74+
Rs. 9,697.68
99+
Rs. 9,091.58
199+
Rs. 8,970.35
249+
Rs. 8,849.13
499+
Rs. 8,727.91
999+
Rs. 8,485.47
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 61913
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 90mm
- Width:
- 13mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 65mm |
|---|---|
| D | 90mm |
| B | 13mm |
| r min | 1mm |
| Dynamic load Cr | 17400 N (1770 kgf) |
| Static load Cor | 16100 N (1640 kgf) |
| Factor | 16.6 |
| Speed in grease | 7100 rpm |
| Speed in oil | 8500 rpm |
| Mass | 0.218 kg |
