SKU: 6910ZZ-NSK

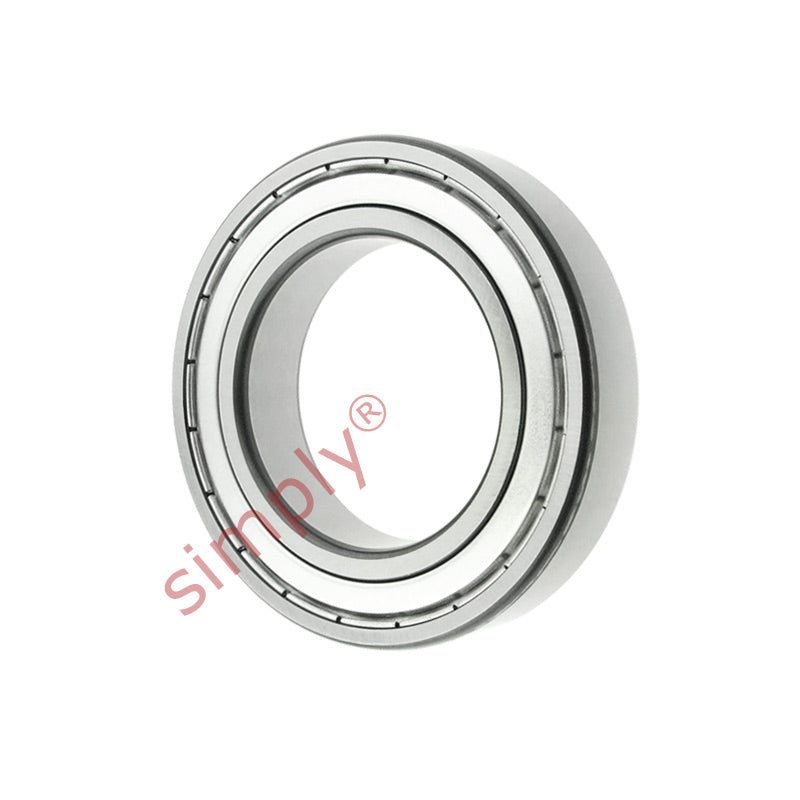

NSK 6910ZZ Metal Shielded Deep Groove Ball Bearing 50x72x12mm
Equivalent to: 6910ZZE 69102Z 6910.2Z 69102ZR 6910FF 61910ZZE 61910ZZ 619102Z 61910.2Z 619102ZR 61910FF
In stock
Price Break
Description
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that don't require a shield or only require 1 shield.
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life, cost-effective solution.
Equivalent: 6910ZZE 69102Z 6910.2Z 69102ZR 6910FF 61910ZZE 61910ZZ 619102Z 61910.2Z 619102ZR 61910FF
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 72mm
- Width:
- 12mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 50mm |
|---|---|
| D | 72mm |
| B | 12mm |
| r min | 0.6mm |
| Dynamic load Cr | 14500 N (1480 kgf) |
| Static load Cor | 11700 N (1200 kgf) |
| Factor | 16.1 |
| Speed in grease | 9000 rpm |
| Speed in oil | 11000 rpm |
| Weight | 0.135 kg |
