SKU: 6908ZZ-NSK

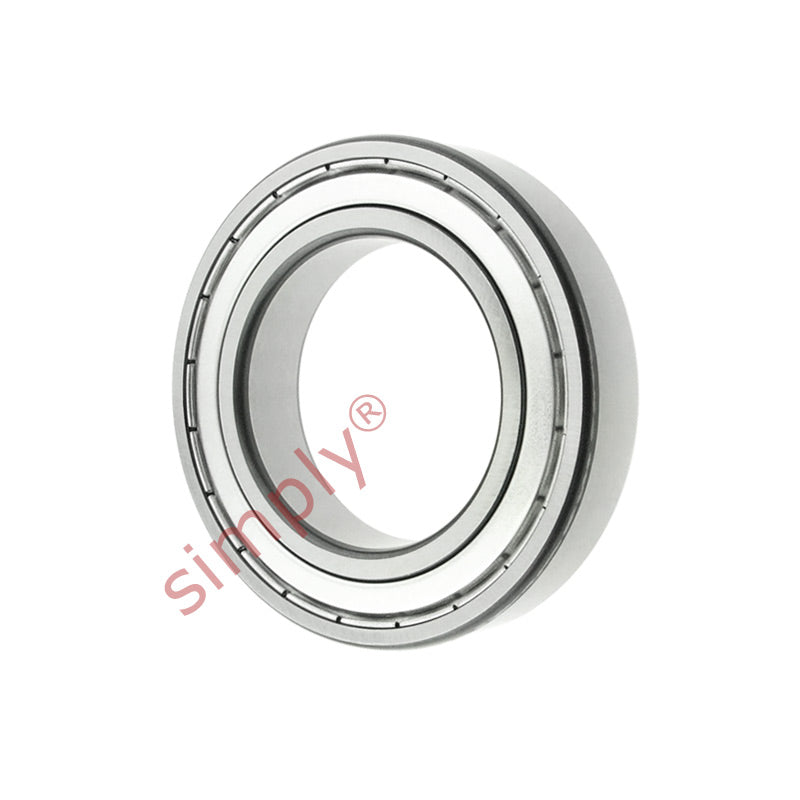

NSK 6908ZZ Metal Shielded Deep Groove Ball Bearing 40x62x12mm
Equivalent to: 6908ZZE 69082Z 6908.2Z 69082ZR 6908FF 61908ZZE 61908ZZ 619082Z 61908.2Z 619082ZR 61908FF
In stock
Price Break
Description
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that don't require a shield or only require 1 shield.
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life, cost-effective solution.
Equivalent: 6908ZZE 69082Z 6908.2Z 69082ZR 6908FF 61908ZZE 61908ZZ 619082Z 61908.2Z 619082ZR 61908FF
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 62mm
- Width:
- 12mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 40mm |
|---|---|
| D | 62mm |
| B | 12mm |
| r min | 0.6mm |
| Dynamic load Cr | 13700 N (1390 kgf) |
| Static load Cor | 10000 N (1020 kgf) |
| Factor | 15.7 |
| Speed in grease | 11000 rpm |
| Speed in oil | 13000 rpm |
| Weight | 0.112 kg |
