SKU: 6907ZZ/5K-NTN

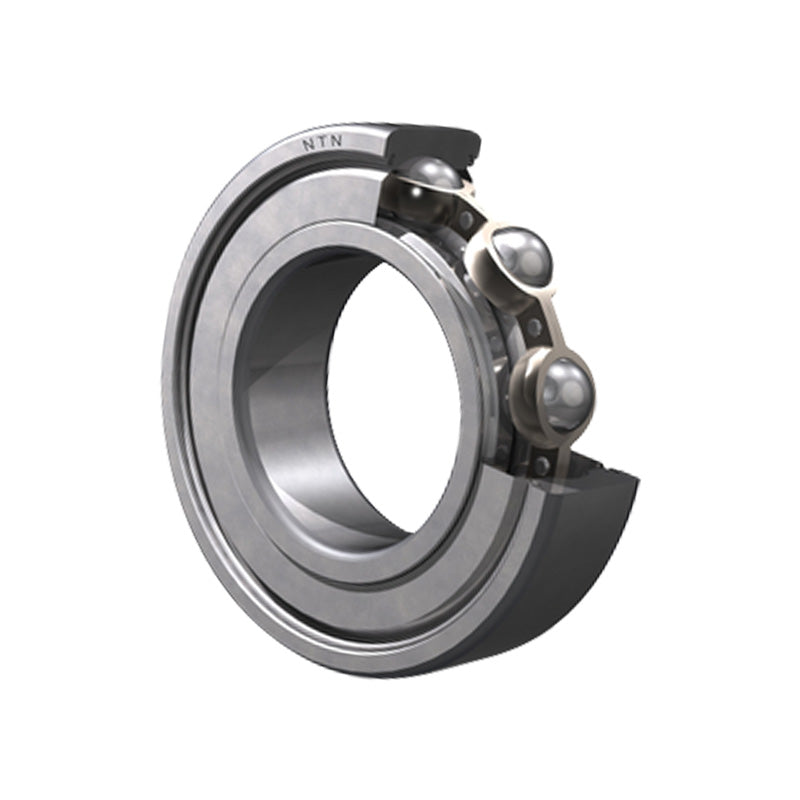

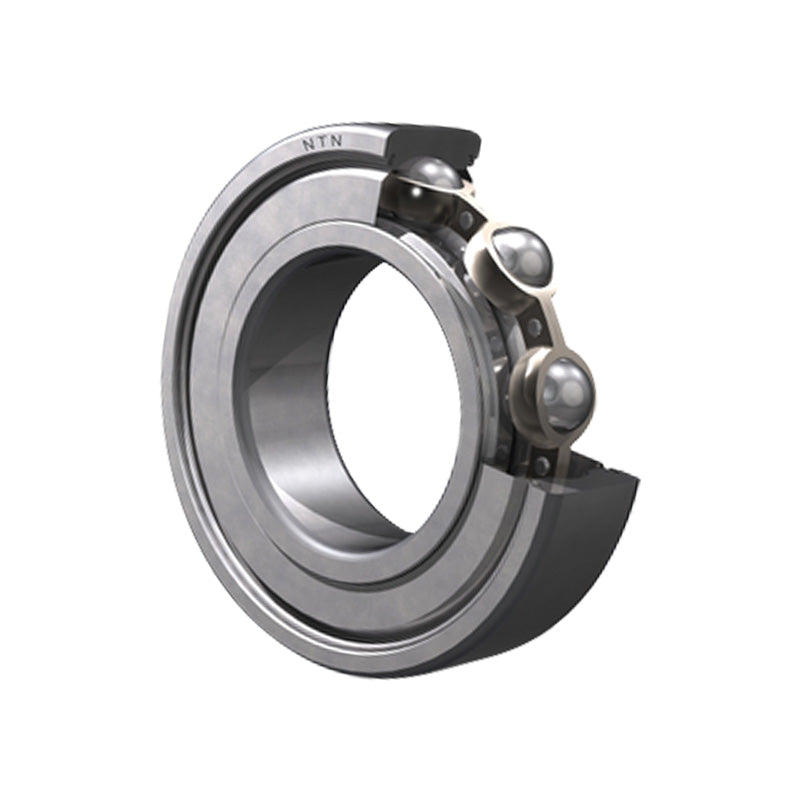

NTN 6907ZZ/5K Metal Shielded Type Deep Groove Ball Bearing 35x55x10mm
Equivalent to: 6907ZZCM 61907ZZCM 6907ZZ 61907ZZ 6907ZZ 69072Z 6907ZZ 69072ZR 6907ZZE 6907FF 6907DD 6907DDC 6907KDDC EL352Z EL35ZZ 9107KDD 9107FF 107KSFF 773L07 6107PP
In stock
Price Break
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 6907ZZCM 61907ZZCM 6907ZZ 61907ZZ 6907ZZ 69072Z 6907ZZ 69072ZR 6907ZZE 6907FF 6907DD 6907DDC 6907KDDC EL352Z EL35ZZ 9107KDD 9107FF 107KSFF 773L07 6107PP
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 55mm
- Width:
- 10mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 35mm |
| D | 55mm |
| B | 10mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 10.6 kN |
| C<sub>or</sub> | 6.85 kN |
| C<sub>u</sub> | 0.495 kN |
| f<sub>0</sub> | 15.8 kN |
| Grease | 12000 rpm |
| Oil | 15000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 39mm |
| d<sub>a</sub> Max. | 40mm |
| D<sub>a</sub> Max. | 51mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight | 0.074 kg |
