SKU: 6906-NTN

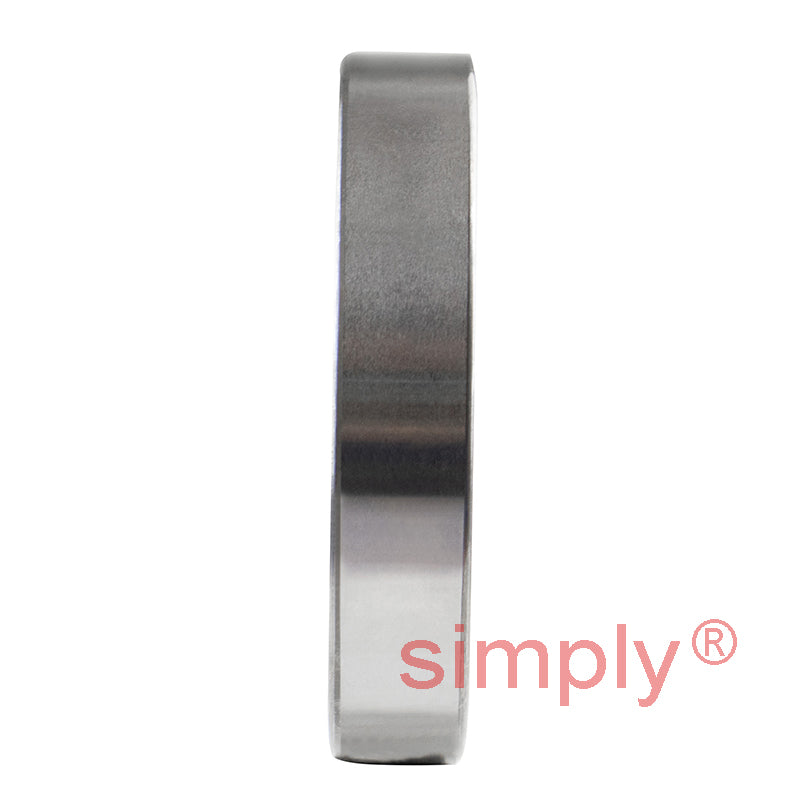

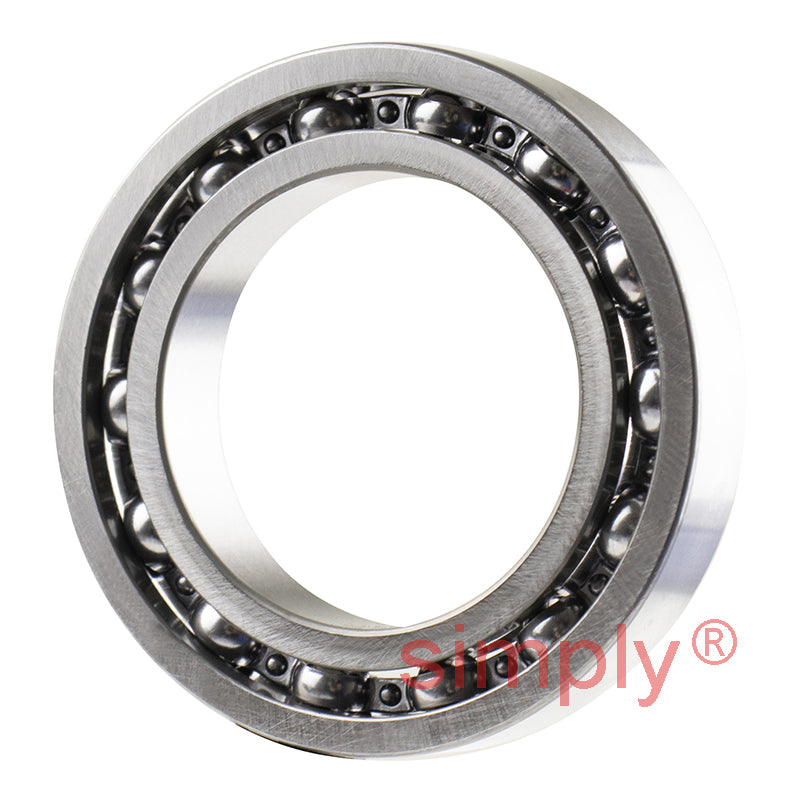

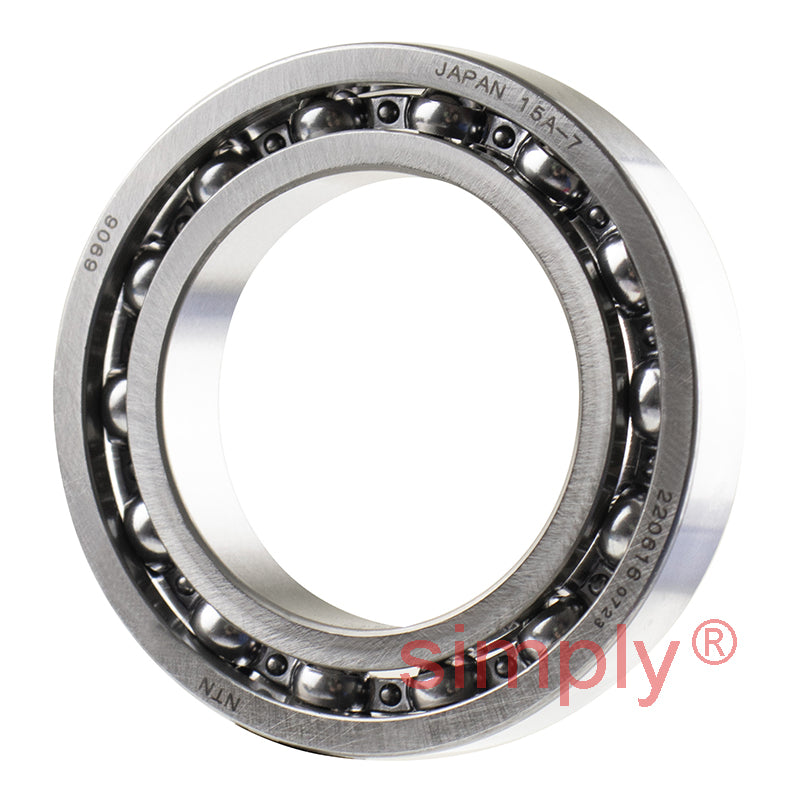

NTN 6906 Open Type Deep Groove Ball Bearing 30x47x9mm
NTN 6906 Open Type Deep Groove Ball Bearing 30x47x9mm
Regular price
Rs. 2,288.98
Regular price
Sale price
Rs. 2,288.98
Taxes included.
Equivalent to: 6906CM 61906CM 9306K 61906 61906S AY30
In stock
Price Break
10+
Rs. 2,037.19
19+
Rs. 1,922.74
29+
Rs. 1,899.85
39+
Rs. 1,876.96
49+
Rs. 1,854.07
74+
Rs. 1,831.18
99+
Rs. 1,716.74
199+
Rs. 1,693.85
249+
Rs. 1,670.96
499+
Rs. 1,648.07
999+
Rs. 1,602.29
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6906CM 61906CM 9306K 61906 61906S AY30
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 9mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 30mm |
| D | 47mm |
| B | 9mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 8 kN |
| C<sub>or</sub> | 5 kN |
| C<sub>u</sub> | 0.365 kN |
| f<sub>0</sub> | 15.8 kN |
| Grease | 14000 rpm |
| Oil | 17000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 32mm |
| D<sub>a</sub> Max. | 45mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight | 0.048 kg |
