SKU: 6902-NTN

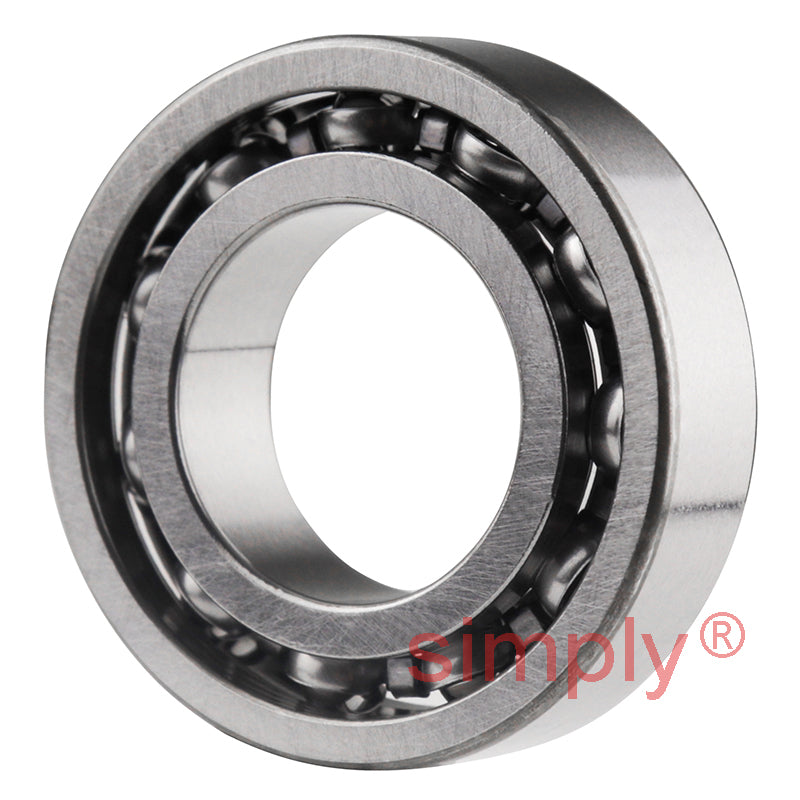

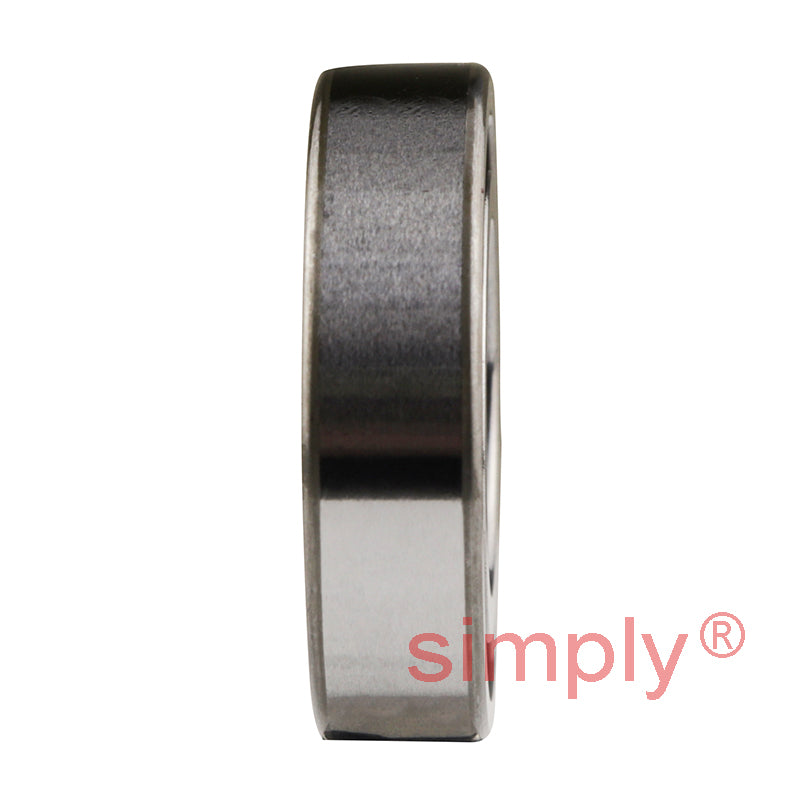

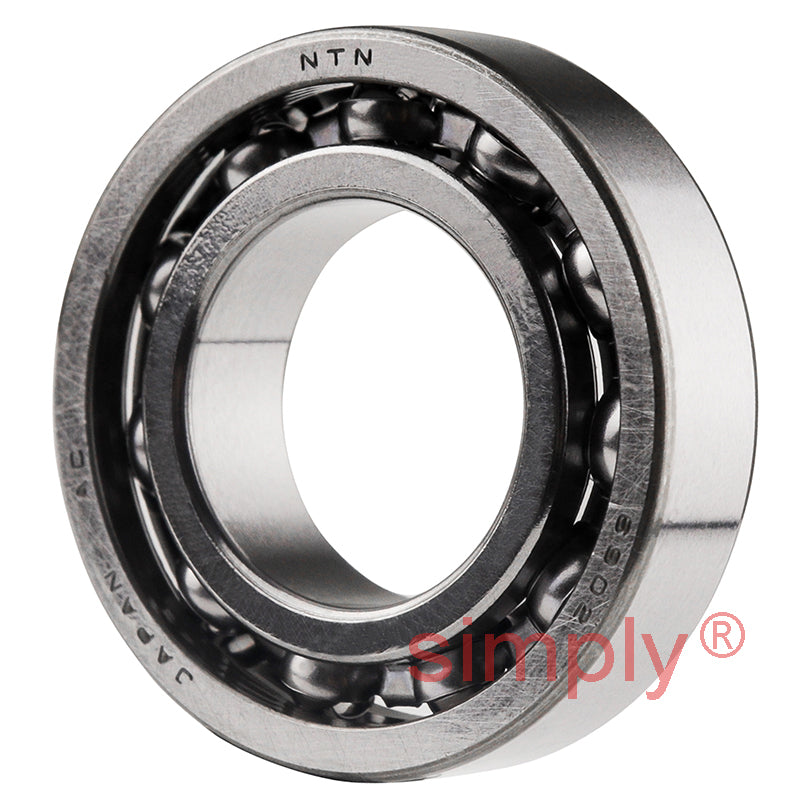

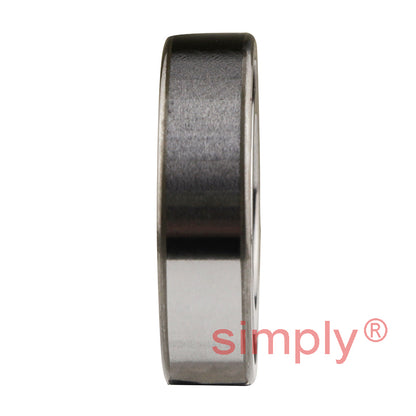

NTN 6902 Open Type Deep Groove Ball Bearing 15x28x7mm
NTN 6902 Open Type Deep Groove Ball Bearing 15x28x7mm
Regular price
Rs. 1,570.79
Regular price
Sale price
Rs. 1,570.79
Taxes included.
Equivalent to: 6902CM 61902CM 9302K 61902 61902S AY15
In stock
Price Break
10+
Rs. 1,398.00
19+
Rs. 1,319.46
29+
Rs. 1,303.76
39+
Rs. 1,288.05
49+
Rs. 1,272.34
74+
Rs. 1,256.63
99+
Rs. 1,178.09
199+
Rs. 1,162.38
249+
Rs. 1,146.68
499+
Rs. 1,130.97
999+
Rs. 1,099.55
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6902CM 61902CM 9302K 61902 61902S AY15
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 28mm
- Width:
- 7mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 15mm |
| D | 28mm |
| B | 7mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 4.05 kN |
| C<sub>or</sub> | 2 kN |
| C<sub>u</sub> | 0.157 kN |
| f<sub>0</sub> | 14.8 kN |
| Grease | 24000 rpm |
| Oil | 28000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 17mm |
| D<sub>a</sub> Max. | 26mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight | 0.016 kg |
