SKU: 6901ZZC3-NSK

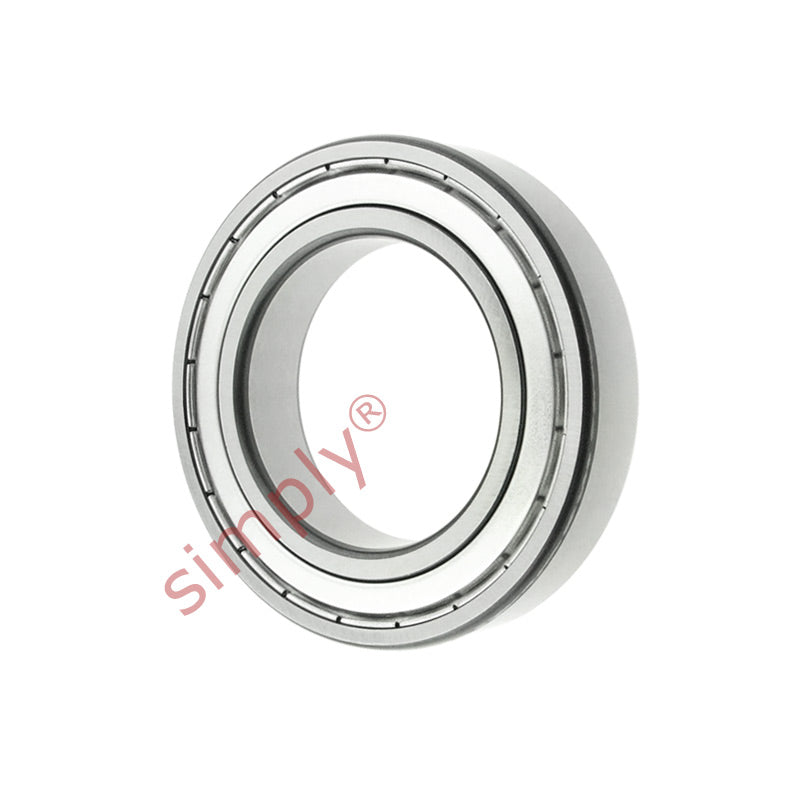

NSK 6901ZZC3 Thin Section Metal Shielded Deep Groove Ball Bearing 12x24x6mm
Equivalent to: 6901ZZEC3 69012ZC3 6901.2ZC3 69012ZRC3 6901FFC3 61901ZZEC3 61901ZZC3 619012ZC3 61901.2ZC3 619012ZRC3 61901FFC3
In stock
Price Break
Description
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that don't require a shield or only require 1 shield.
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life, cost-effective solution.
Equivalent: 6901ZZEC3 69012ZC3 6901.2ZC3 69012ZRC3 6901FFC3 61901ZZEC3 61901ZZC3 619012ZC3 61901.2ZC3 619012ZRC3 61901FFC3
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 24mm
- Width:
- 6mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 12mm |
|---|---|
| D | 24mm |
| B | 6mm |
| r min | 0.3mm |
| Dynamic load Cr | 2890 N (295 kgf) |
| Static load Cor | 1460 N (149 kgf) |
| Factor | 14.5 |
| Speed in grease | 30000 rpm |
| Speed in oil | 36000 rpm |
| Weight | 0.01 kg |
