SKU: 6901-NTN

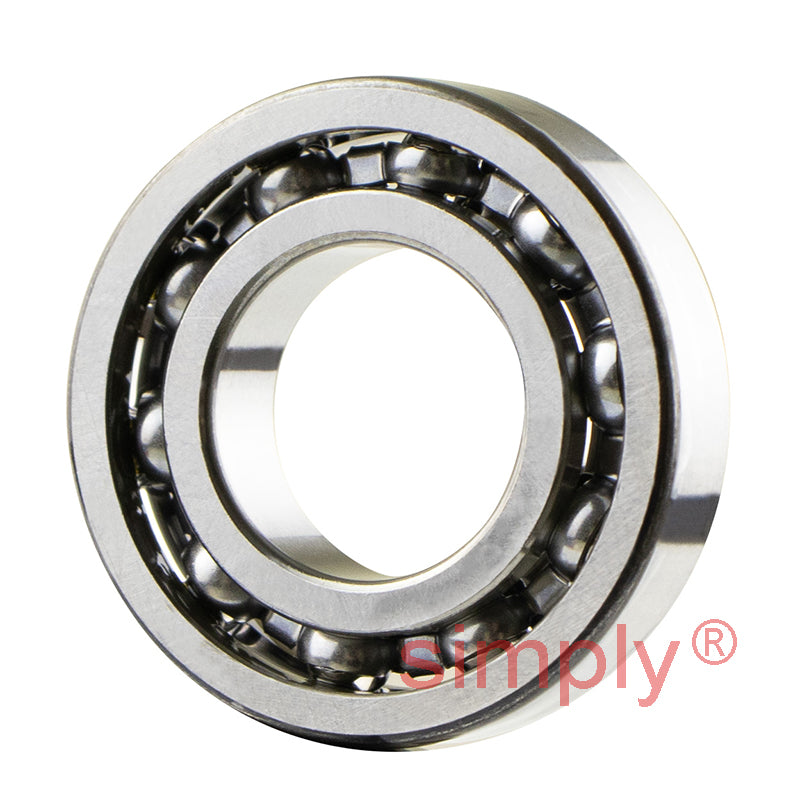

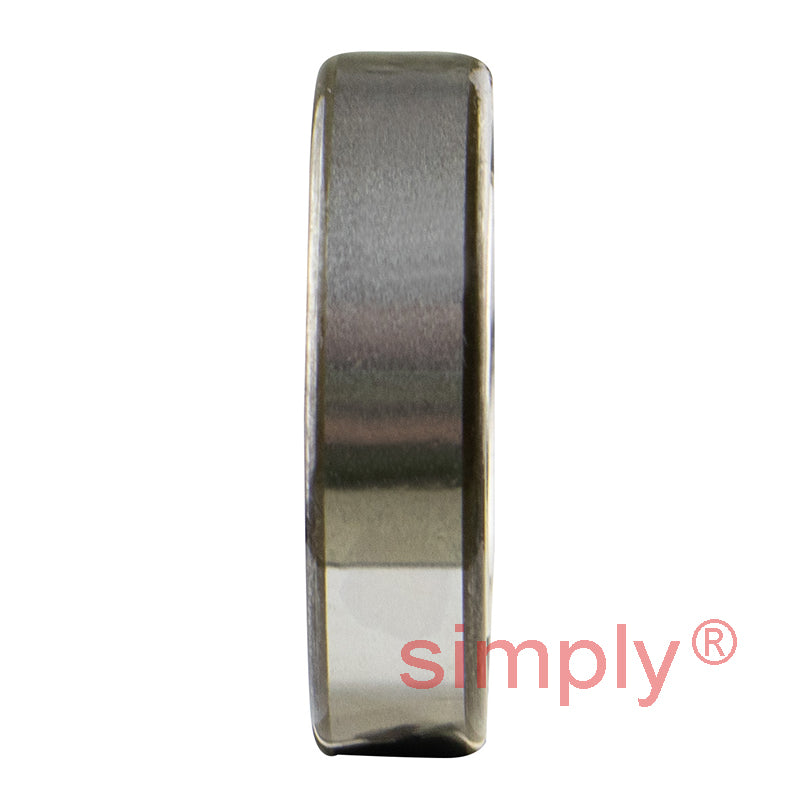

NTN 6901 Open Type Deep Groove Ball Bearing 12x24x6mm
NTN 6901 Open Type Deep Groove Ball Bearing 12x24x6mm
Regular price
Rs. 1,404.37
Regular price
Sale price
Rs. 1,404.37
Taxes included.
Equivalent to: 6901CM 61901CM 9301K 61901 61901S AY12
In stock
Price Break
10+
Rs. 1,249.89
19+
Rs. 1,179.67
29+
Rs. 1,165.63
39+
Rs. 1,151.58
49+
Rs. 1,137.54
74+
Rs. 1,123.50
99+
Rs. 1,053.28
199+
Rs. 1,039.23
249+
Rs. 1,025.19
499+
Rs. 1,011.15
999+
Rs. 983.06
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6901CM 61901CM 9301K 61901 61901S AY12
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 24mm
- Width:
- 6mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 12mm |
| D | 24mm |
| B | 6mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 3.2 kN |
| C<sub>or</sub> | 1.46 kN |
| C<sub>u</sub> | 0.115 kN |
| f<sub>0</sub> | 14.5 kN |
| Grease | 27000 rpm |
| Oil | 32000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 14mm |
| D<sub>a</sub> Max. | 22mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight | 0.011 kg |
