SKU: 6822-NTN

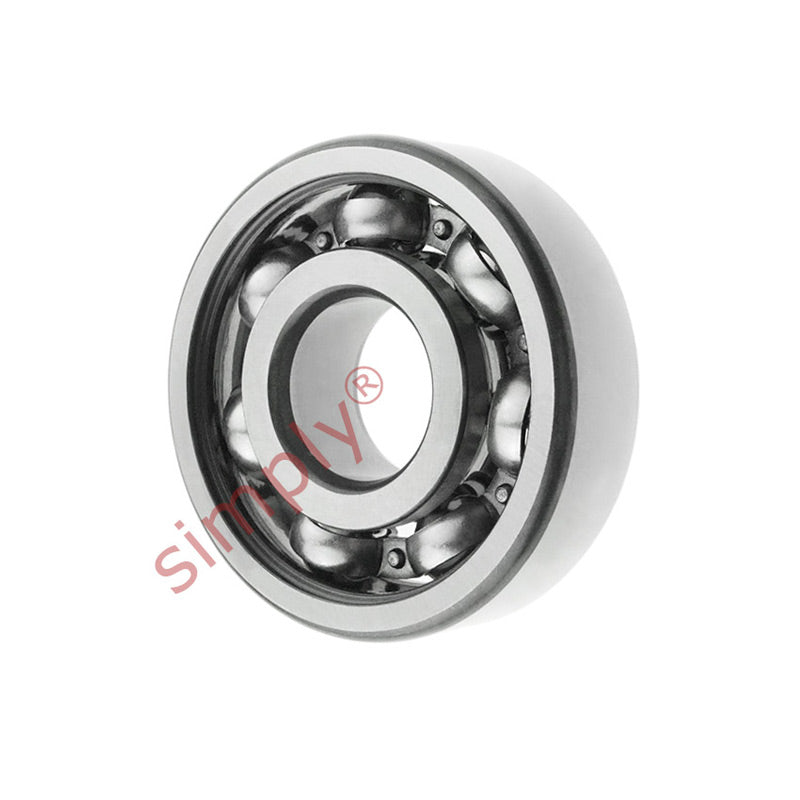

NTN 6822 Open Type Deep Groove Ball Bearing 110x140x16mm
NTN 6822 Open Type Deep Groove Ball Bearing 110x140x16mm
Regular price
Rs. 30,819.24
Regular price
Sale price
Rs. 30,819.24
Taxes included.
Equivalent to: 6822CM 61822CM 61822T 61822 1822S 61822Y
In stock
Price Break
10+
Rs. 27,429.12
19+
Rs. 25,888.16
29+
Rs. 25,579.97
39+
Rs. 25,271.78
49+
Rs. 24,963.58
74+
Rs. 24,655.39
99+
Rs. 23,114.43
199+
Rs. 22,806.24
249+
Rs. 22,498.05
499+
Rs. 22,189.85
999+
Rs. 21,573.47
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6822CM 61822CM 61822T 61822 1822S 61822Y
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 140mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 110mm |
| D | 140mm |
| B | 16mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 27.5 kN |
| C<sub>or</sub> | 28.2 kN |
| C<sub>u</sub> | 1.68 kN |
| f<sub>0</sub> | 16 kN |
| Grease | 4300 rpm |
| Oil | 5100 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 115mm |
| D<sub>a</sub> Max. | 135mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.515 kg |
