SKU: 6812-2Z-NSK

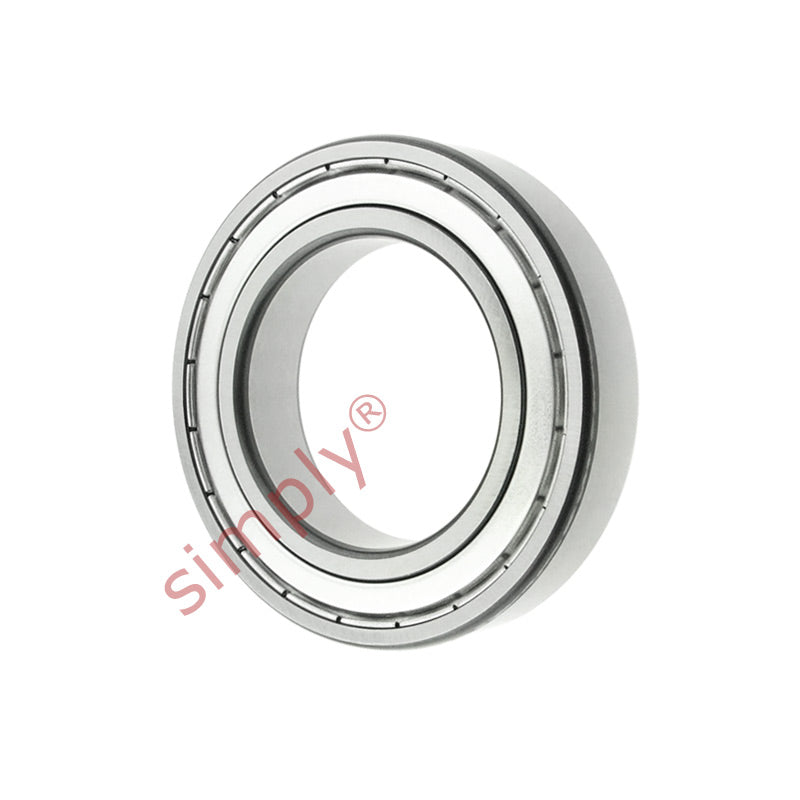

NSK 6812ZZ Metal Shielded Deep Groove Ball Bearing 60x78x10mm
Equivalent to: 6812ZZE 68122Z 6812.2Z 68122ZR 6812FF 61812ZZE 61812ZZ 618122Z 61812.2Z 618122ZR 61812FF
In stock
Price Break
Description
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that don't require a shield or only require 1 shield.
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life, cost-effective solution.
Equivalent: 6812ZZE 68122Z 6812.2Z 68122ZR 6812FF 61812ZZE 61812ZZ 618122Z 61812.2Z 618122ZR 61812FF
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 78mm
- Width:
- 10mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 60mm |
|---|---|
| D | 78mm |
| B | 10mm |
| r min | 0.3mm |
| Dynamic load Cr | 11500 N (1170 kgf) |
| Static load Cor | 10900 N (1120 kgf) |
| Factor | 16.9 |
| Speed in grease | 8000 rpm |
| Speed in oil | 9500 rpm |
| Weight | 0.103 kg |
