SKU: 6810ZZ-NSK

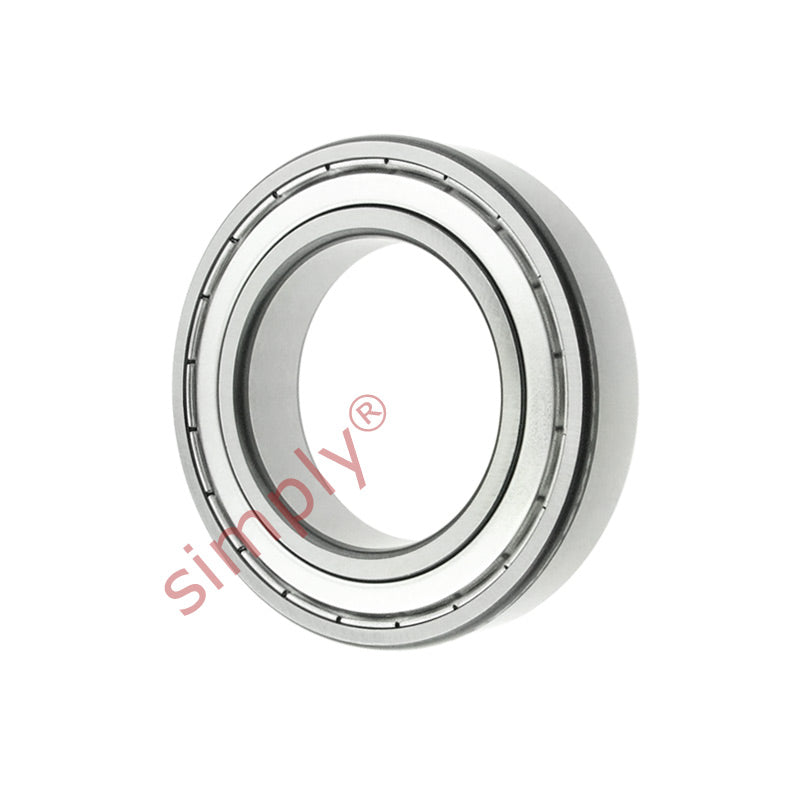

NSK 6810ZZ Metal Shielded Deep Groove Ball Bearing 50x65x7mm
Equivalent to: 6810ZZE 68102Z 6810.2Z 68102ZR 6810FF 61810ZZE 61810ZZ 618102Z 61810.2Z 618102ZR 61810FF
In stock
Price Break
Description
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that don't require a shield or only require 1 shield.
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life, cost-effective solution.
Equivalent: 6810ZZE 68102Z 6810.2Z 68102ZR 6810FF 61810ZZE 61810ZZ 618102Z 61810.2Z 618102ZR 61810FF
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 65mm
- Width:
- 7mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 50mm |
|---|---|
| D | 65mm |
| B | 7mm |
| r min | 0.3mm |
| Dynamic load Cr | 6400 N (655 kgf) |
| Static load Cor | 6200 N (635 kgf) |
| Factor | 17.2 |
| Speed in grease | 9500 rpm |
| Speed in oil | 11000 rpm |
| Weight | 0.05 kg |
