SKU: 6806ZZ-NSK

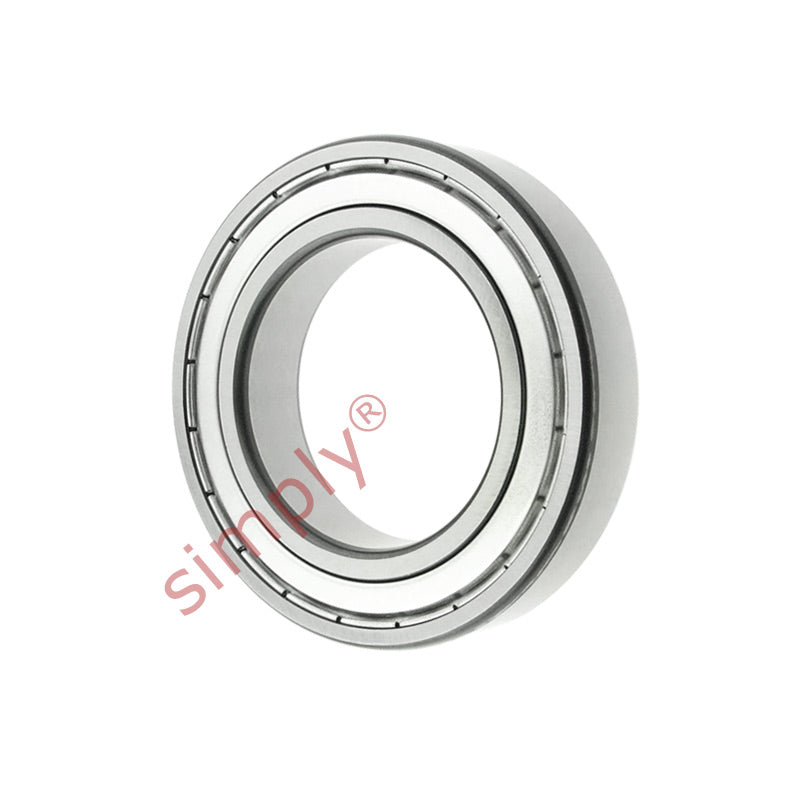

NSK 6806ZZ Metal Shielded Deep Groove Ball Bearing 30x42x7mm
Equivalent to: 6806ZZE 68062Z 6806.2Z 68062ZR 6806FF 61806ZZE 61806ZZ 618062Z 61806.2Z 618062ZR 61806FF
In stock
Price Break
Description
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that don't require a shield or only require 1 shield.
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life, cost-effective solution.
Equivalent: 6806ZZE 68062Z 6806.2Z 68062ZR 6806FF 61806ZZE 61806ZZ 618062Z 61806.2Z 618062ZR 61806FF
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 42mm
- Width:
- 7mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 30mm |
|---|---|
| D | 42mm |
| B | 7mm |
| r min | 0.3mm |
| Dynamic load Cr | 4700 N (480 kgf) |
| Static load Cor | 3650 N (370 kgf) |
| Factor | 16.4 |
| Speed in grease | 15000 rpm |
| Speed in oil | 18000 rpm |
| Weight | 0.024 kg |
