SKU: 6802-NTN

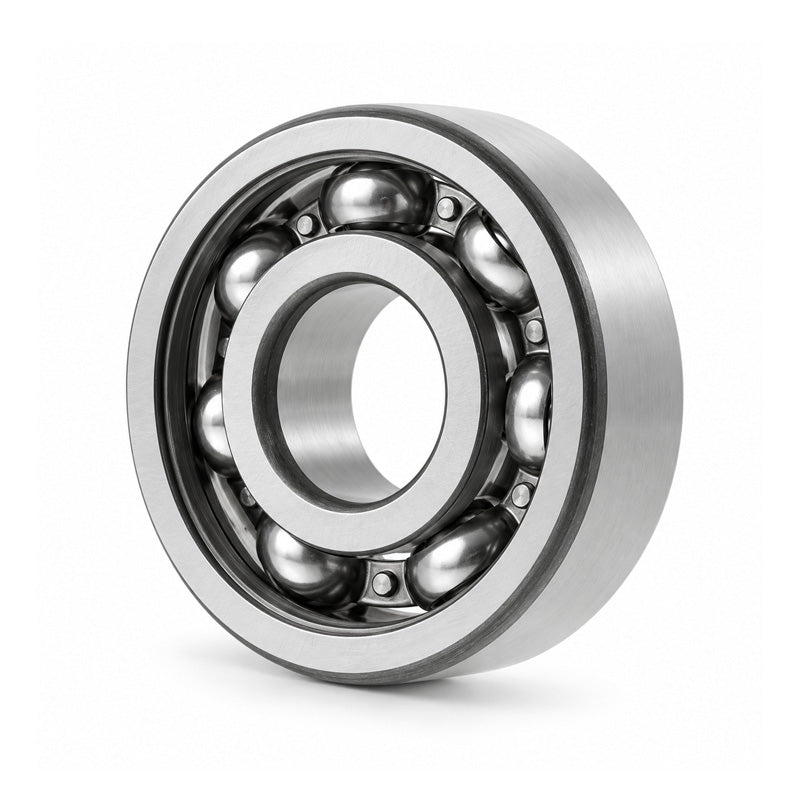

NTN 6802 Open Type Deep Groove Ball Bearing 15x24x5mm
NTN 6802 Open Type Deep Groove Ball Bearing 15x24x5mm
Regular price
Rs. 1,438.93
Regular price
Sale price
Rs. 1,438.93
Taxes included.
Equivalent to: 6802CM 61802CM 61802T 61802 1802S 61802
In stock
Price Break
10+
Rs. 1,280.65
19+
Rs. 1,208.70
29+
Rs. 1,194.31
39+
Rs. 1,179.92
49+
Rs. 1,165.53
74+
Rs. 1,151.14
99+
Rs. 1,079.20
199+
Rs. 1,064.81
249+
Rs. 1,050.42
499+
Rs. 1,036.03
999+
Rs. 1,007.25
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6802CM 61802CM 61802T 61802 1802S 61802
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 24mm
- Width:
- 5mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 15mm |
| D | 24mm |
| B | 5mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 2.3 kN |
| C<sub>or</sub> | 1.26 kN |
| C<sub>u</sub> | 0.091 kN |
| f<sub>0</sub> | 15.8 kN |
| Grease | 26000 rpm |
| Oil | 31000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 17mm |
| D<sub>a</sub> Max. | 22mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight | 0.007 kg |
