SKU: 6800ZZ-NSK

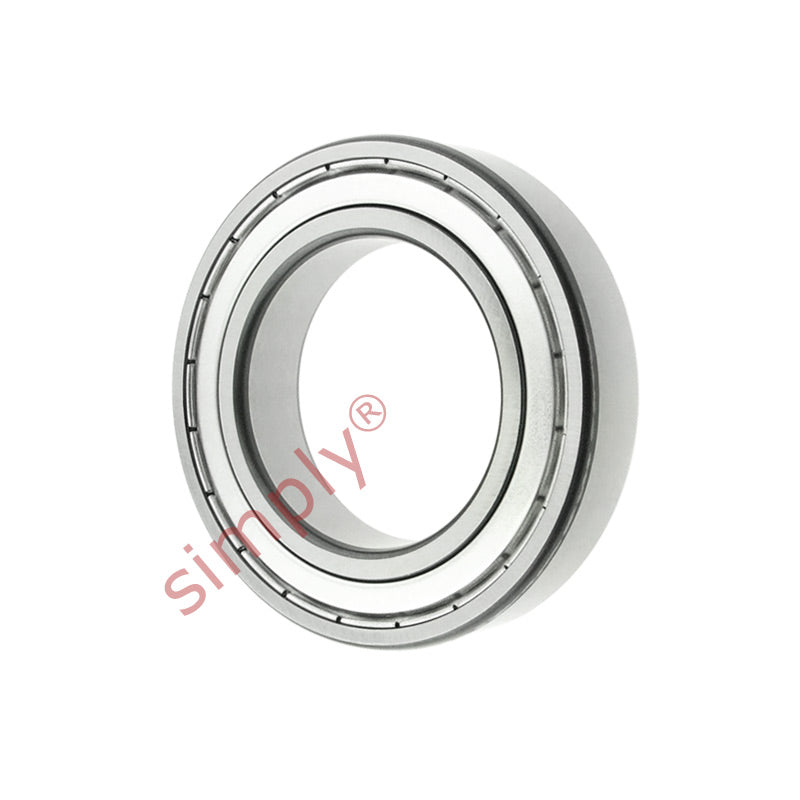

NSK 6800ZZ Metal Shielded Deep Groove Ball Bearing 10x19x5mm
Equivalent to: 6800ZZE 68002Z 6800.2Z 68002ZR 6800FF 61800ZZE 61800ZZ 618002Z 61800.2Z 618002ZR 61800FF
In stock
Price Break
Description
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that don't require a shield or only require 1 shield.
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life, cost-effective solution.
Equivalent: 6800ZZE 68002Z 6800.2Z 68002ZR 6800FF 61800ZZE 61800ZZ 618002Z 61800.2Z 618002ZR 61800FF
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 19mm
- Width:
- 5mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 10mm |
|---|---|
| D | 19mm |
| B | 5mm |
| r min | 0.3mm |
| Dynamic load Cr | 1720 N (175 kgf) |
| Static load Cor | 840 N (86 kgf) |
| Factor | 14.8 |
| Speed in grease | 34000 rpm |
| Speed in oil | 40000 rpm |
| Weight | 0.005 kg |
