SKU: 6800-NTN

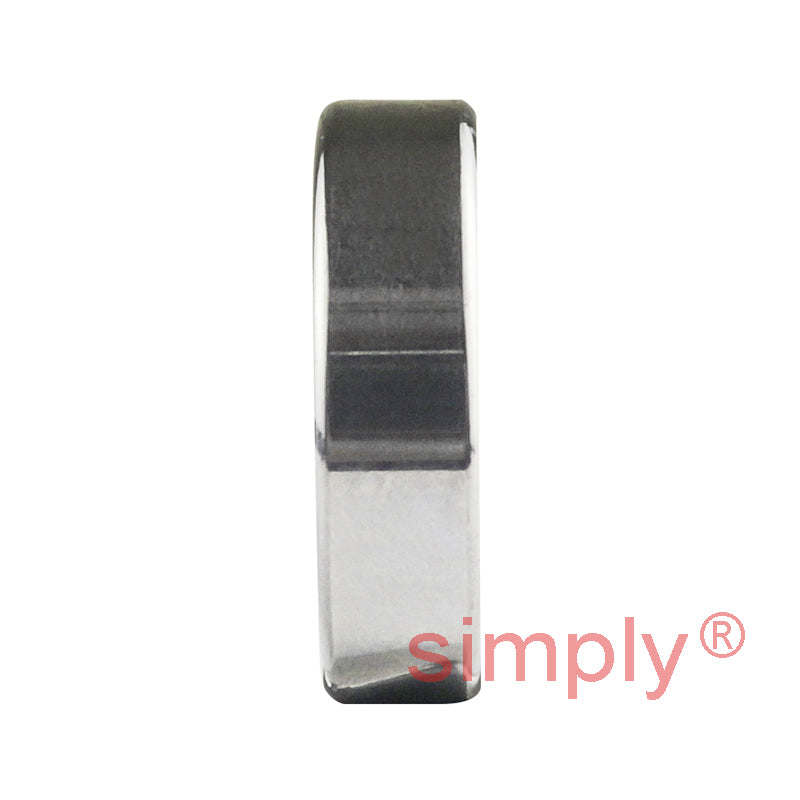

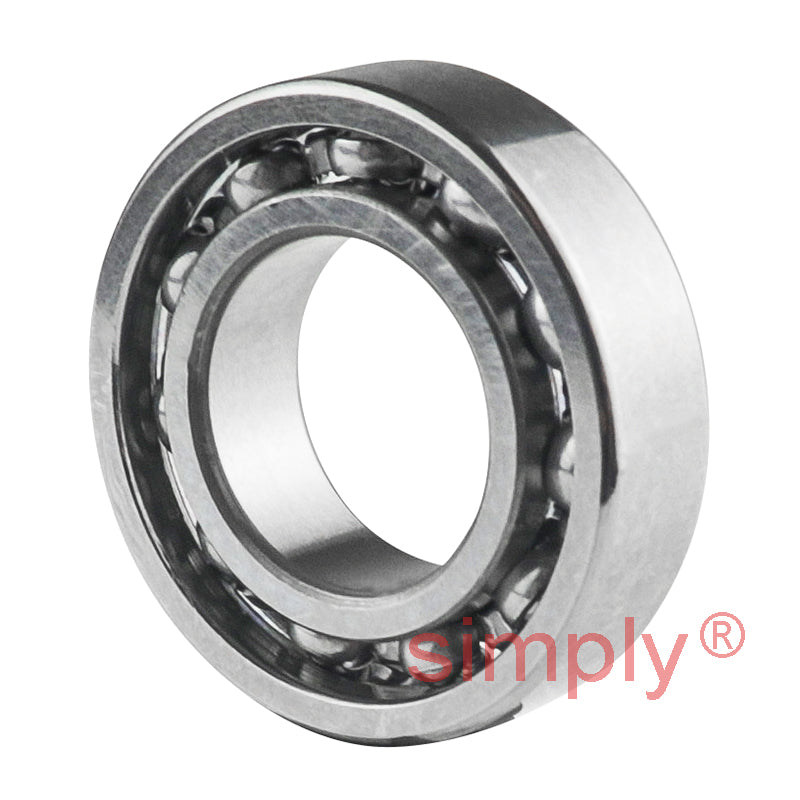

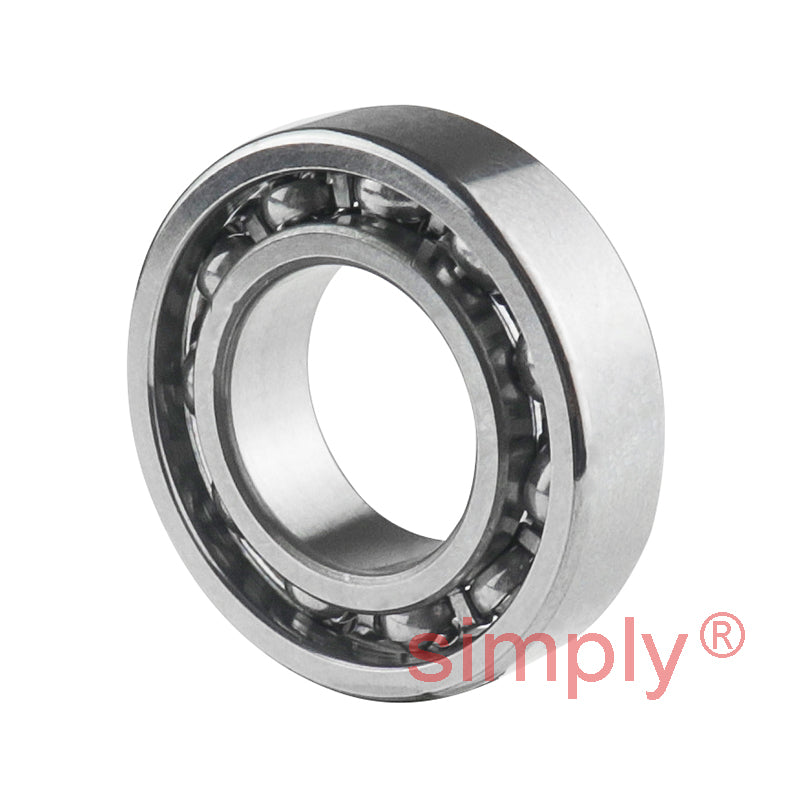

NTN 6800 Open Type Deep Groove Ball Bearing 10x19x5mm
NTN 6800 Open Type Deep Groove Ball Bearing 10x19x5mm
Regular price
Rs. 1,259.70
Regular price
Sale price
Rs. 1,259.70
Taxes included.
Equivalent to: 6800CM 61800CM 61800T 61800 1800S L1910 61800
In stock
Price Break
10+
Rs. 1,121.13
19+
Rs. 1,058.15
29+
Rs. 1,045.55
39+
Rs. 1,032.95
49+
Rs. 1,020.36
74+
Rs. 1,007.76
99+
Rs. 944.78
199+
Rs. 932.18
249+
Rs. 919.58
499+
Rs. 906.98
999+
Rs. 881.79
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6800CM 61800CM 61800T 61800 1800S L1910 61800
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 19mm
- Width:
- 5mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 10mm |
| D | 19mm |
| B | 5mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 2.03 kN |
| C<sub>or</sub> | 0.925 kN |
| C<sub>u</sub> | 0.072 kN |
| f<sub>0</sub> | 14.8 kN |
| Grease | 32000 rpm |
| Oil | 38000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 12mm |
| D<sub>a</sub> Max. | 17mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight | 0.005 kg |
