SKU: 6409NR-SKF

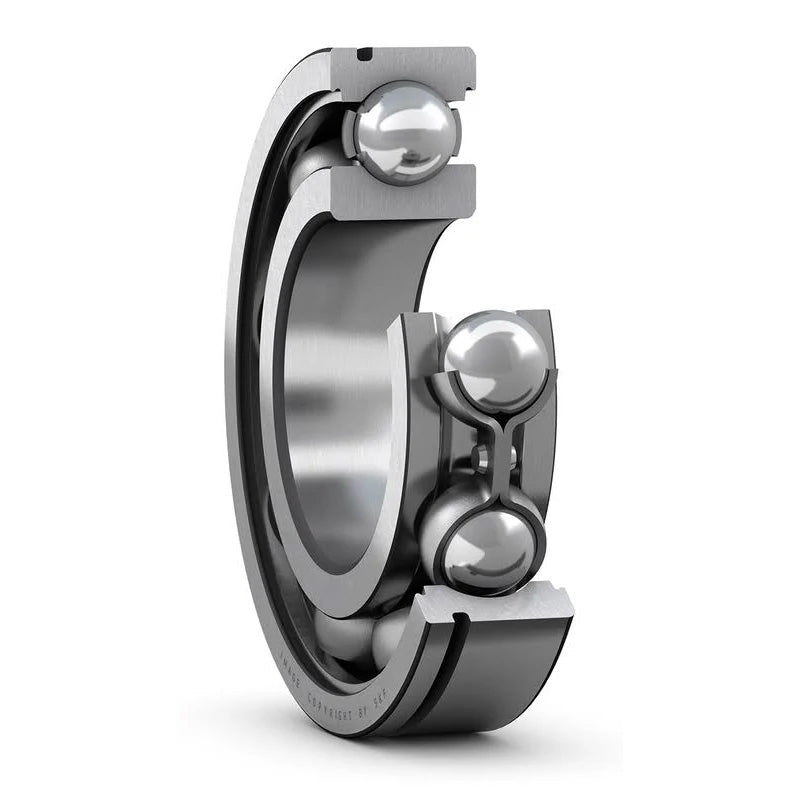

SKF 6409NR Open Type Snap Ring Deep Groove Bearing 45x120x29mm
SKF 6409NR Open Type Snap Ring Deep Groove Bearing 45x120x29mm
Regular price
Rs. 24,180.18
Regular price
Sale price
Rs. 24,180.18
Taxes included.
In stock
Price Break
10+
Rs. 21,520.36
19+
Rs. 20,311.35
29+
Rs. 20,069.55
39+
Rs. 19,827.75
49+
Rs. 19,585.95
74+
Rs. 19,344.14
99+
Rs. 18,135.14
199+
Rs. 17,893.33
249+
Rs. 17,651.53
499+
Rs. 17,409.73
999+
Rs. 16,926.13
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 120mm
- Width:
- 29mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical

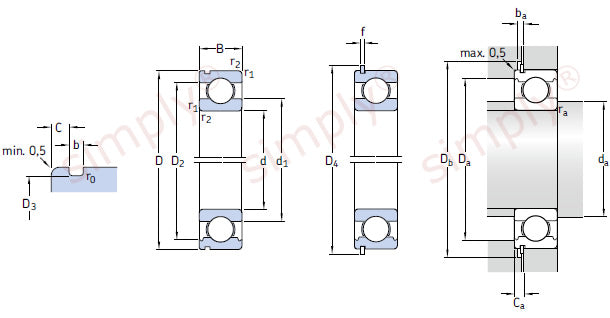

| d | 45mm |
|---|---|
| D | 120mm |
| B | 29mm |
| Dynamic load C | 76.1 kN |
| Static load Co | 45 kN |
| Fatigue load limit Pu | 1.9 kN |
| Reference speed | 13000 rpm |
| Limiting speed | 8500 rpm |
| Weight | 1.55kg |
| Snap ring | SP 120 |
| d1 | 68.9mm |
| D2 | 95.9mm |
| D3 | 115.21mm |
| D4 | 129.7mm |
| b | 3.1mm |
| f | 2.82mm |
| C | 4.06mm |
| r1r2 min | 2mm |
| ro max | 0.6mm |
| da min | 58mm |
| Da max | 107mm |
| Db min | 131mm |
| ba min | 3.5mm |
| Ca max | 6.88mm |
| ra max | 2mm |
| Calc Factor kr | 0.035 |
| fo | 12 |
