SKU: 6408-NTN

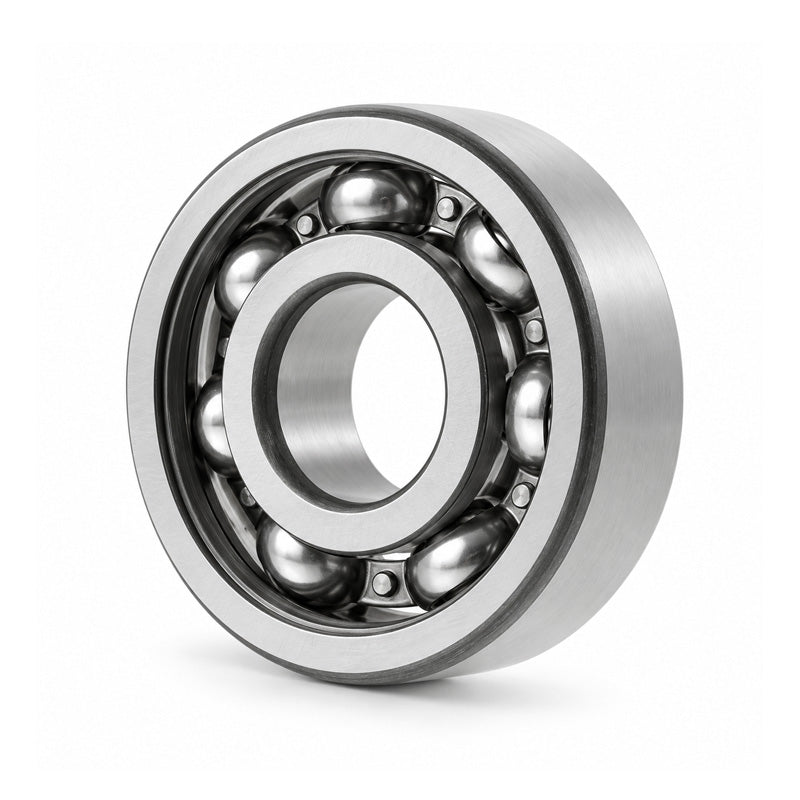

NTN 6408 Open Type Deep Groove Ball Bearing 40x110x27mm
NTN 6408 Open Type Deep Groove Ball Bearing 40x110x27mm
Regular price
Rs. 9,642.37
Regular price
Sale price
Rs. 9,642.37
Taxes included.
Equivalent to: 6408CM 408K 1408 408S 6408 3408 6C
In stock
Price Break
10+
Rs. 8,581.71
19+
Rs. 8,099.59
29+
Rs. 8,003.17
39+
Rs. 7,906.74
49+
Rs. 7,810.32
74+
Rs. 7,713.90
99+
Rs. 7,231.78
199+
Rs. 7,135.35
249+
Rs. 7,038.93
499+
Rs. 6,942.51
999+
Rs. 6,749.66
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6408CM 408K 1408 408S 6408 3408 6C
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 40mm |
| D | 110mm |
| B | 27mm |
| r<sub>s</sub> min | 2mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 70.5 kN |
| C<sub>or</sub> | 36.5 kN |
| C<sub>u</sub> | 2.85 kN |
| f<sub>0</sub> | 12.3 kN |
| Grease | 7000 rpm |
| Oil | 8200 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 49mm |
| D<sub>a</sub> Max. | 101mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 1.23 kg |
