SKU: 6320L1C3-NTN

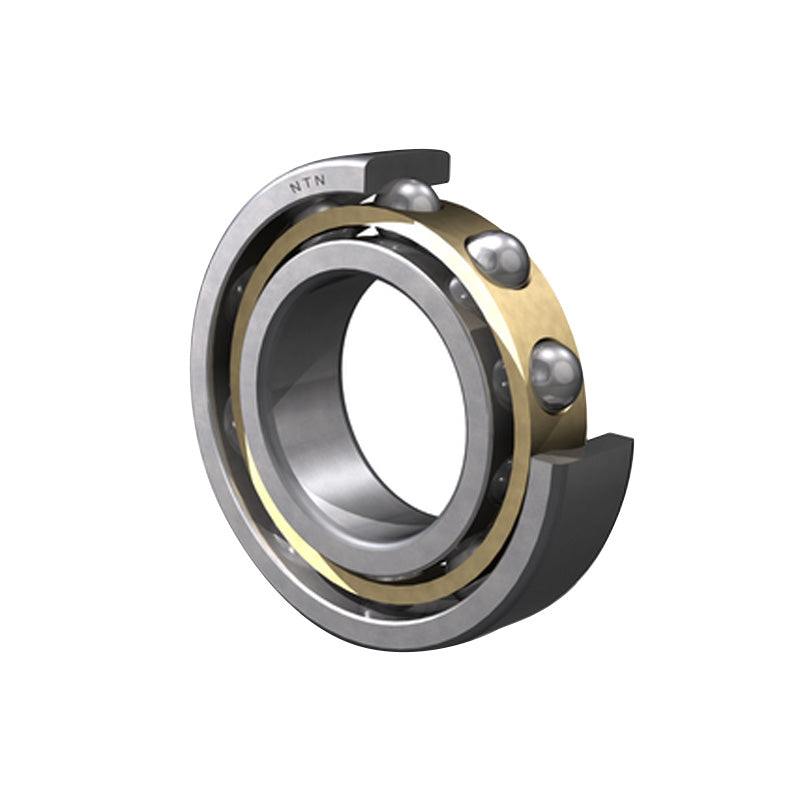

NTN 6320L1C3 Machined Brass Cage Open Type Deep Groove Ball Bearing 100x215x47mm
NTN 6320L1C3 Machined Brass Cage Open Type Deep Groove Ball Bearing 100x215x47mm
Regular price
Rs. 47,450.16
Regular price
Sale price
Rs. 47,450.16
Taxes included.
In stock
Price Break
10+
Rs. 42,230.64
19+
Rs. 39,858.13
29+
Rs. 39,383.63
39+
Rs. 38,909.13
49+
Rs. 38,434.63
74+
Rs. 37,960.13
99+
Rs. 35,587.62
199+
Rs. 35,113.12
249+
Rs. 34,638.62
499+
Rs. 34,164.12
999+
Rs. 33,215.11
Description
Description
Machined Brass Cage Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. Most brass cages are machined from cast or wrought brass. They are unaffected by most common bearing lubricants, including synthetic oils and greases, and can be cleaned using organic solvents.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 215mm
- Width:
- 47mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 100mm |
| D | 215mm |
| B | 47mm |
| r<sub>s</sub> min | 3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 192 Kn |
| C<sub>or</sub> | 141 kN |
| C<sub>u</sub> | 8.75 kN |
| f<sub>0</sub> | 13.2 kN |
| Grease | 3200 rpm |
| Oil | 3700 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 113mm |
| D<sub>a</sub> Max. | 202mm |
| r<sub>as</sub> Max. | 2.5mm |
| Weight | 7 kg |
