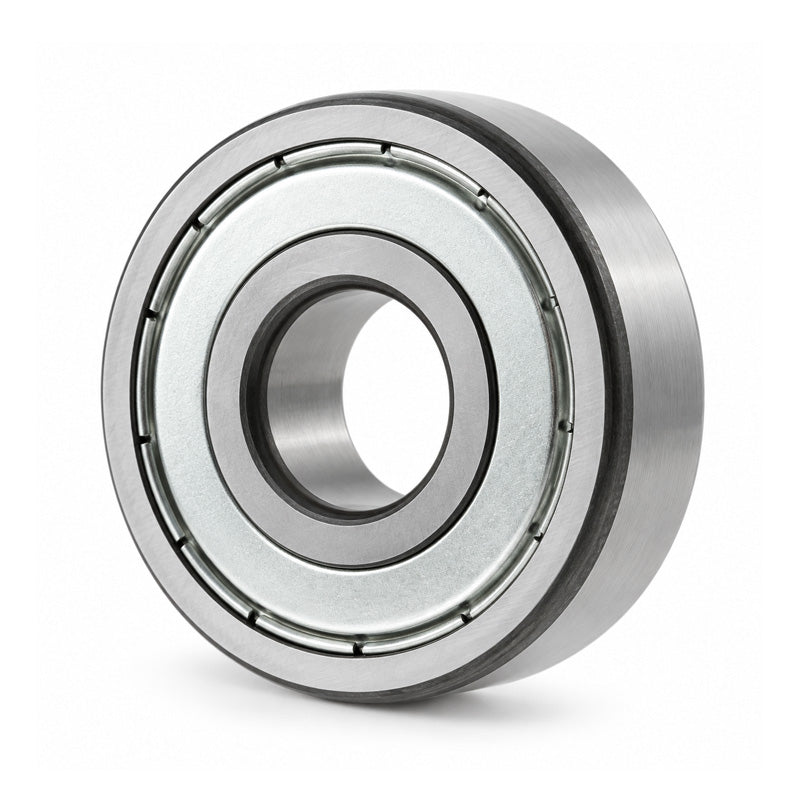

NACHI 6318ZZC3 Metal Shielded Deep Groove Ball Bearing 90x190x43mm
NACHI 6318ZZC3 Metal Shielded Deep Groove Ball Bearing 90x190x43mm
Regular price
Rs. 31,884.35
Regular price
Sale price
Rs. 31,884.35
Taxes included.
Equivalent to: 6318ZZEC3 63182ZC3 6318.2ZC3 6318KDDC3 6318DDC3 63182ZRC3 6318FFC3
In stock
Price Break
10+
Rs. 28,377.07
19+
Rs. 26,782.85
29+
Rs. 26,464.01
39+
Rs. 26,145.17
49+
Rs. 25,826.32
74+
Rs. 25,507.48
99+
Rs. 23,913.26
199+
Rs. 23,594.42
249+
Rs. 23,275.58
499+
Rs. 22,956.73
999+
Rs. 22,319.05
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Equivalent: 6318ZZEC3 63182ZC3 6318.2ZC3 6318KDDC3 6318DDC3 63182ZRC3 6318FFC3
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 190mm
- Width:
- 43mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 90mm |
|---|---|
| Outside Diameter D | 190mm |
| Width B | 43mm |
| Min radius r | 3mm |
| Dynamic load | 143000 kN |
| Static load | 107000 kN |
| Max speed | 3600 rpm |
| da min | 104mm |
| Da max | 176mm |
| ra max | 2.5mm |
| Weight | 4.91 kg |
