SKU: 6316ZZC3-NSK

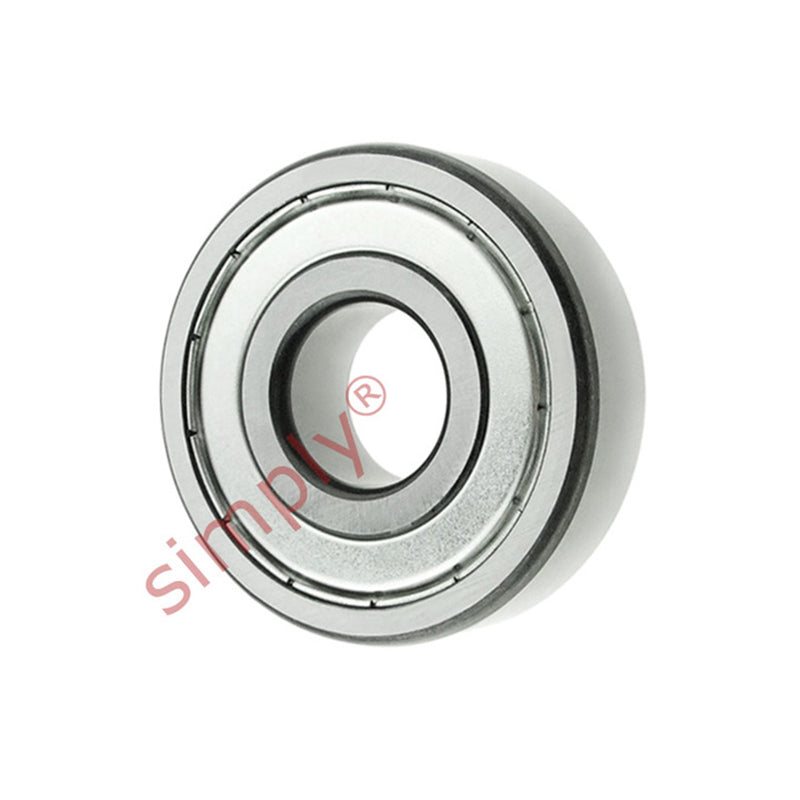

NSK 6316ZZC3 Metal Shielded Deep Groove Ball Bearing 80x170x39mm
Equivalent to: 6316ZZEC3 63162ZC3 6316.2ZC3 63162ZRC3 6316FFC3
In stock
Price Break
Description
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that don't require a shield or only require 1 shield.
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life, cost-effective solution.
Equivalent: 6316ZZEC3 63162ZC3 6316.2ZC3 63162ZRC3 6316FFC3
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 39mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 80mm |
|---|---|
| D | 170mm |
| B | 39mm |
| r min | 2.1mm |
| Dynamic load Cr | 123000 N (12500 kgf) |
| Static load Cor | 86500 N (8850 kgf) |
| Factor | 13.3 |
| Speed in grease | 4000 rpm |
| Speed in oil | 4800 rpm |
| Weight | 3.67 kg |
