SKU: 6316DDUC3-NSK

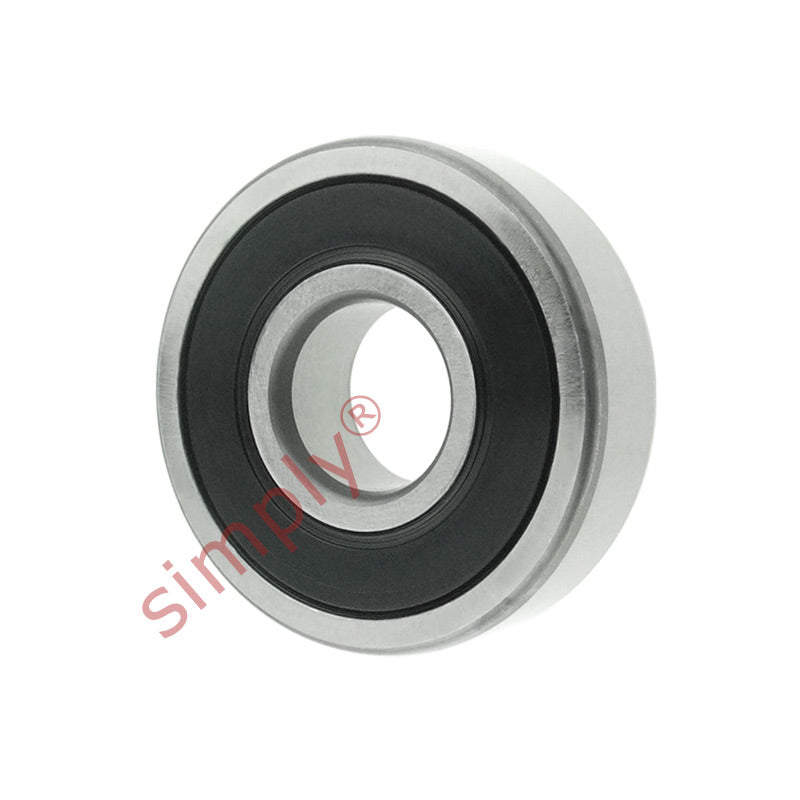

NSK 6316DDUC3 Rubber Sealed Deep Groove Ball Bearing 80x170x39mm
NSK 6316DDUC3 Rubber Sealed Deep Groove Ball Bearing 80x170x39mm
Regular price
Rs. 25,107.04
Regular price
Sale price
Rs. 25,107.04
Taxes included.
Equivalent to: 6316NSEC3 6316DUC3 6316RSC3 6316RSHC3 6316PC3 6316RSRC3 6316LUC3 63162NSEC3 63162RSC3 63162RS1C3 63162RSHC3 6316PPC3 63162RSRC3 6316LLUC3
In stock
Price Break
10+
Rs. 22,345.27
19+
Rs. 21,089.91
29+
Rs. 20,838.84
39+
Rs. 20,587.77
49+
Rs. 20,336.70
74+
Rs. 20,085.63
99+
Rs. 18,830.28
199+
Rs. 18,579.21
249+
Rs. 18,328.14
499+
Rs. 18,077.07
999+
Rs. 17,574.93
Description
Description
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 6316NSEC3 6316DUC3 6316RSC3 6316RSHC3 6316PC3 6316RSRC3 6316LUC3 63162NSEC3 63162RSC3 63162RS1C3 63162RSHC3 6316PPC3 63162RSRC3 6316LLUC3
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 39mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 80mm |
|---|---|
| D | 170mm |
| B | 39mm |
| r min | 2.1mm |
| Dynamic load Cr | 123000 N (12500 kgf) |
| Static load Cor | 86500 N (8850 kgf) |
| Factor | 13.3 |
| Speed in grease | 2800 rpm |
| Speed in oil | 4800 rpm |
| Weight | 3.67 kg |
