SKU: 6310ZZC3/5K-NTN

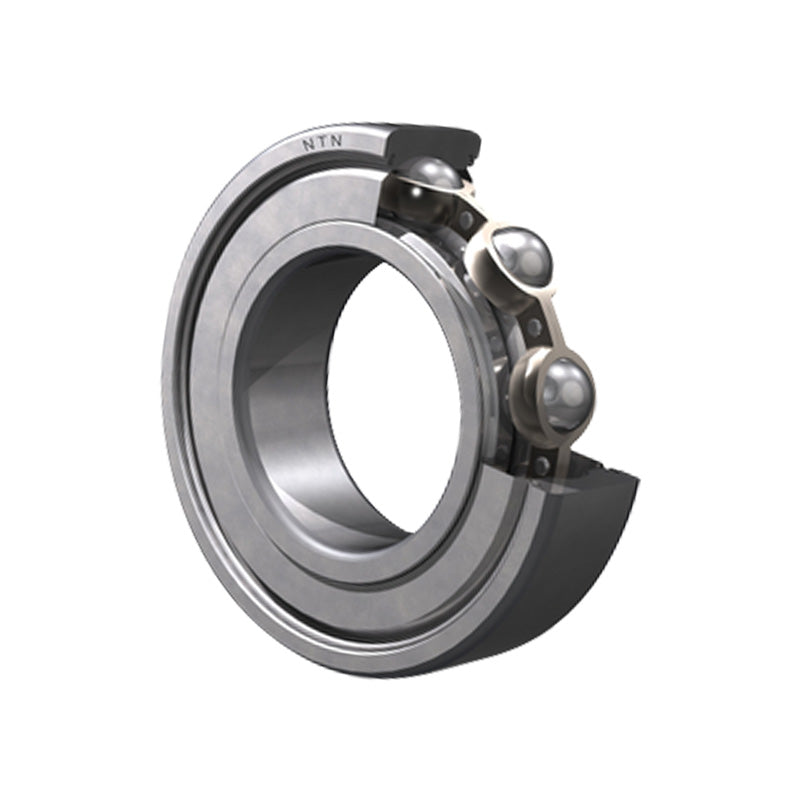

NTN 6310ZZC3/5K Metal Shielded Type Deep Groove Ball Bearing 50x110x27mm
Equivalent to: 6310ZZC3 63102ZC3 6310ZZC3 63102ZRC3 6310ZZEC3 6310FFC3 6310DDC3 6310DDCC3 6310KDDCC3 EL502ZC3 EL50ZZC3 9110KDDC3 9110FFC3 110KSFFC3 773L10C3 6110PPC3
In stock
Price Break
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 6310ZZC3 63102ZC3 6310ZZC3 63102ZRC3 6310ZZEC3 6310FFC3 6310DDC3 6310DDCC3 6310KDDCC3 EL502ZC3 EL50ZZC3 9110KDDC3 9110FFC3 110KSFFC3 773L10C3 6110PPC3
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| --- | Bearing dimensions |
|---|---|
| d | 50mm |
| D | 110mm |
| B | 27mm |
| r<sub>s</sub> min | 2mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 68.5 kN |
| C<sub>or</sub> | 38.5 kN |
| C<sub>u</sub> | 2.99 kN |
| f<sub>0</sub> | 13.2 kN |
| Grease | 6400 rpm |
| Oil | 7500 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 59mm |
| d<sub>a</sub> Max. | 68.5mm |
| D<sub>a</sub> Max. | 101mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 1.07 kg |
