SKU: 6310-2Z/C3-EU

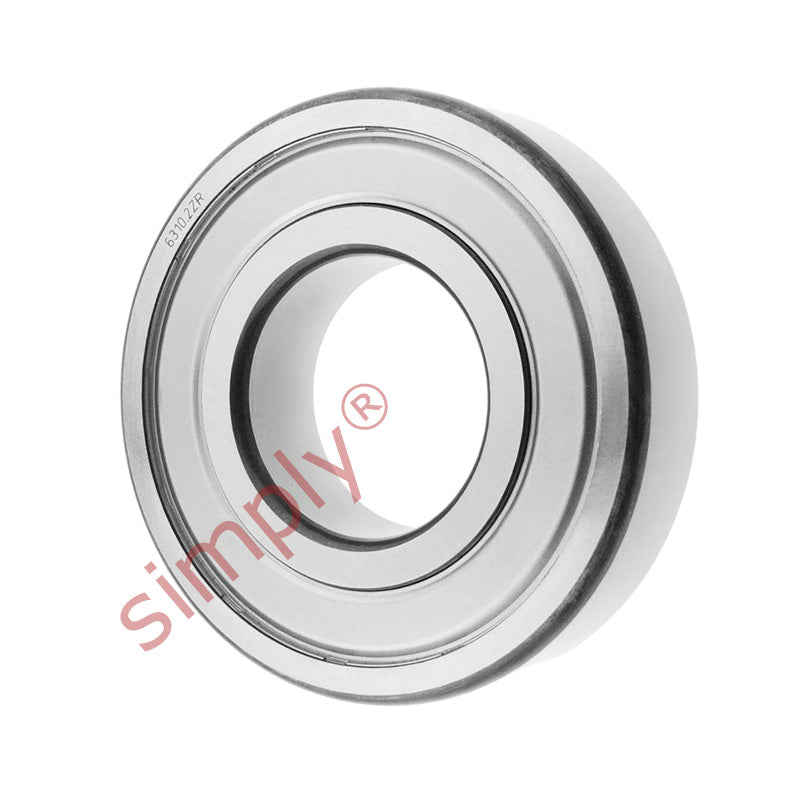

6310ZZC3 Budget Metal Shielded Deep Groove Ball Bearing 50x110x27mm
Equivalent to: 6310.2ZC3 6310KDDC3 6310DDC3 6310FFC3 63102ZRC3 63102ZRC3 6310ZZEC3 6310ZZC3
In stock
Price Break
Couldn't load pickup availability
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6310.2ZC3 6310KDDC3 6310DDC3 6310FFC3 63102ZRC3 63102ZRC3 6310ZZEC3 6310ZZC3
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| B | 27mm |
| r min | 2mm |
| Dynamic load Cr | 62 kN |
| Static load Cor | 38.3 kN |
| Speed in grease | 6100 rpm |
| Speed in oil | 7300 rpm |
