SKU: 6309DDUC3-NSK

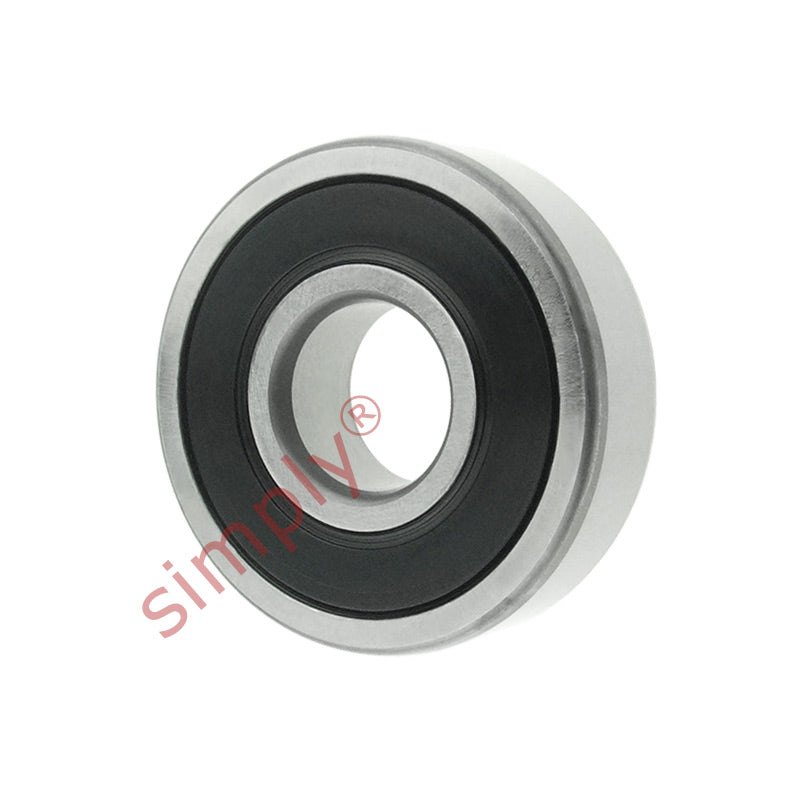

NSK 6309DDUC3 Rubber Sealed Deep Groove Ball Bearing 45x100x25mm
NSK 6309DDUC3 Rubber Sealed Deep Groove Ball Bearing 45x100x25mm
Regular price
Rs. 2,610.30
Regular price
Sale price
Rs. 2,610.30
Taxes included.
Equivalent to: 6309NSEC3 6309DUC3 6309RSC3 6309RSHC3 6309PC3 6309RSRC3 6309LUC3 63092NSEC3 63092RSC3 63092RS1C3 63092RSHC3 6309PPC3 63092RSRC3 6309LLUC3
In stock
Price Break
10+
Rs. 2,323.17
19+
Rs. 2,192.65
29+
Rs. 2,166.55
39+
Rs. 2,140.45
49+
Rs. 2,114.34
74+
Rs. 2,088.24
99+
Rs. 1,957.73
199+
Rs. 1,931.62
249+
Rs. 1,905.52
499+
Rs. 1,879.42
999+
Rs. 1,827.21
Description
Description
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 6309NSEC3 6309DUC3 6309RSC3 6309RSHC3 6309PC3 6309RSRC3 6309LUC3 63092NSEC3 63092RSC3 63092RS1C3 63092RSHC3 6309PPC3 63092RSRC3 6309LLUC3
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 25mm |
| r min | 1.5mm |
| Dynamic load Cr | 53000 N (5400 kgf) |
| Static load Cor | 32000 N (3250 kgf) |
| Factor | 13.1 |
| Speed in grease | 4800 rpm |
| Speed in oil | 8000 rpm |
| Weight | 0.829 kg |
