SKU: 6308M/C4VL0241-SKF

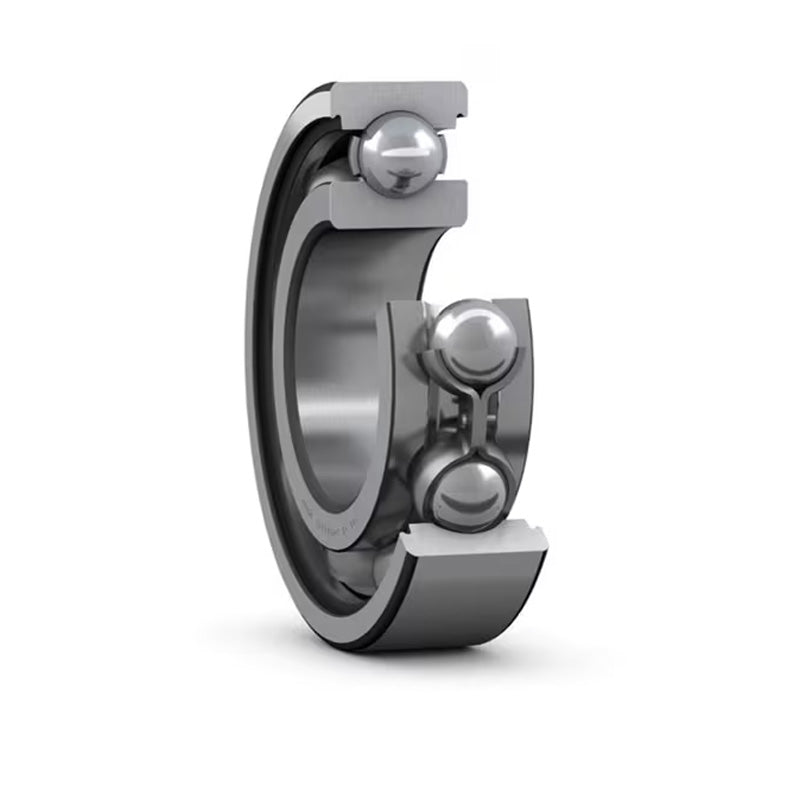

SKF 6308MC4VL0241 Open Deep Groove Ball Bearing 40x90x23mm
SKF 6308MC4VL0241 Open Deep Groove Ball Bearing 40x90x23mm
Regular price
Rs. 106,838.06
Regular price
Sale price
Rs. 106,838.06
Taxes included.
In stock
Price Break
10+
Rs. 95,085.87
19+
Rs. 89,743.97
29+
Rs. 88,675.59
39+
Rs. 87,607.21
49+
Rs. 86,538.83
74+
Rs. 85,470.45
99+
Rs. 80,128.55
199+
Rs. 79,060.16
249+
Rs. 77,991.78
499+
Rs. 76,923.40
999+
Rs. 74,786.64
Description
Description
|
Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness) is applied to the bearing during manufacture to provide electrical insulation |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| d | 40mm |
|---|---|
| D | 90mm |
| B | 23mm |
| Dynamic load | 42.3 kN |
| Static load | 24 kn |
| Fatigue load limit Pu | 1.02 kN |
| Reference speed | 17000 rpm |
| Limiting speed | 11000 rpm |
| Weight | 0.63 kg |
| d1 | 56.1mm |
| D1 | 73.8mm |
| D2 | 77.7mm |
| r1r2 min | 1.5mm |
| da min | 49mm |
| Da max | 81mm |
| ra max | 1.5mm |
| Calculation factor kr | 0.03 |
| Calculation factor Cor | 13 |
