SKU: 6308-ZZE/C3-NACHI

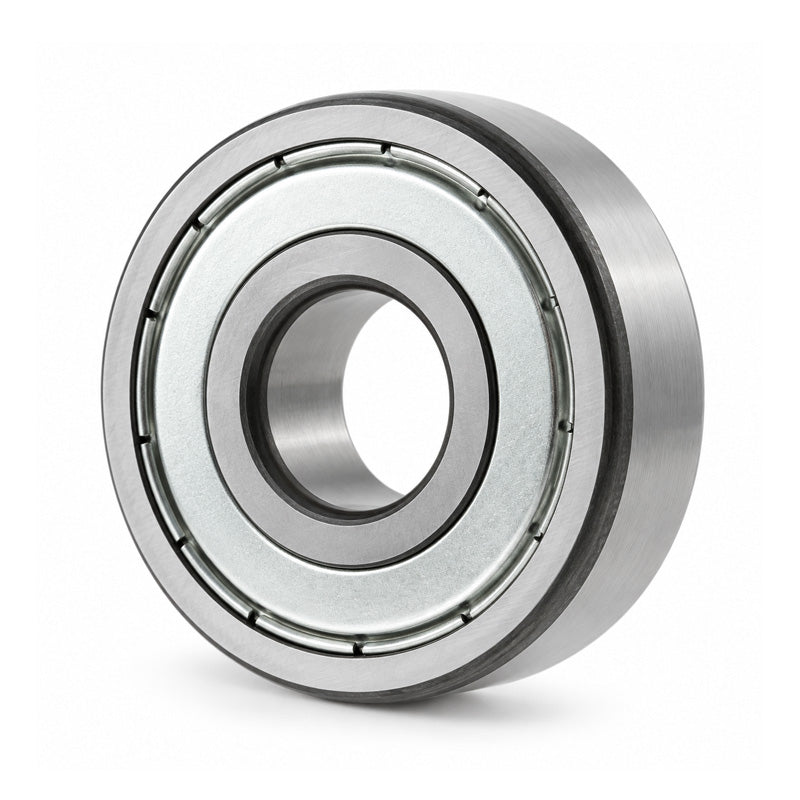

NACHI 6308ZZEC3 Metal Shielded Deep Groove Ball Bearing 40x90x23mm
NACHI 6308ZZEC3 Metal Shielded Deep Groove Ball Bearing 40x90x23mm
Regular price
Rs. 2,020.14
Regular price
Sale price
Rs. 2,020.14
Taxes included.
Equivalent to: 6308ZZC3 63082ZC3 6308.2ZC3 6308KDDC3 6308DDC3 63082ZRC3 6308FFC3
In stock
Price Break
10+
Rs. 1,797.92
19+
Rs. 1,696.92
29+
Rs. 1,676.72
39+
Rs. 1,656.51
49+
Rs. 1,636.31
74+
Rs. 1,616.11
99+
Rs. 1,515.11
199+
Rs. 1,494.90
249+
Rs. 1,474.70
499+
Rs. 1,454.50
999+
Rs. 1,414.10
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Equivalent: 6308ZZC3 63082ZC3 6308.2ZC3 6308KDDC3 6308DDC3 63082ZRC3 6308FFC3
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 40mm |
|---|---|
| Outside Diameter D | 90mm |
| Width B | 23mm |
| Min radius r | 1.5mm |
| Dynamic load | 40500 kN |
| Static load | 24100 kN |
| Max speed | 7800 rpm |
| da min | 49mm |
| Da max | 81mm |
| ra max | 1.5mm |
| Weight | 0.633 kg |
