SKU: 6308-2NSE/C3-NACHI

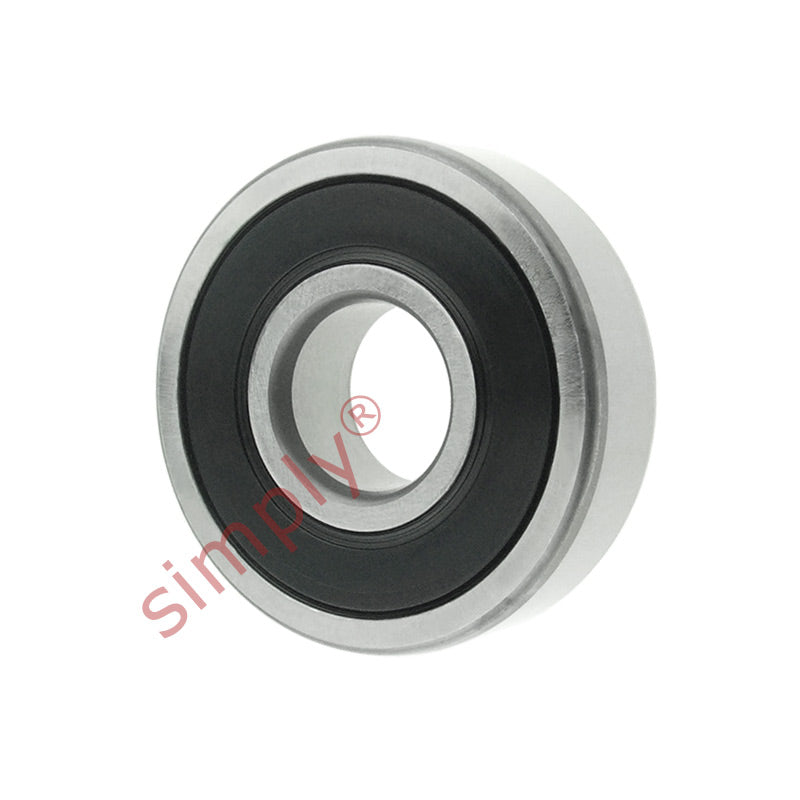

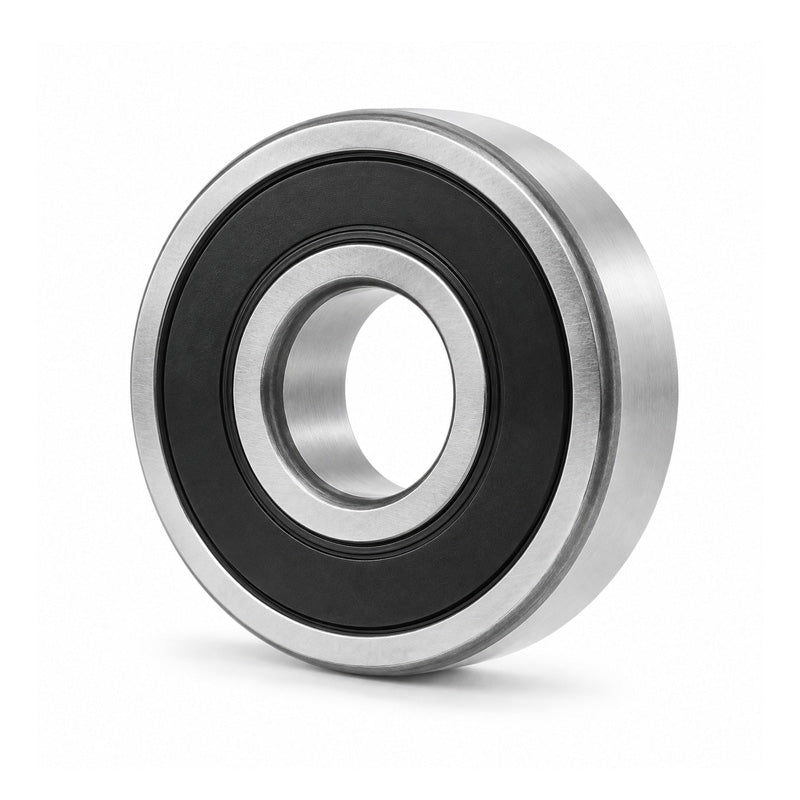

NACHI 63082NSEC3 Contact Rubber Sealed Deep Groove Ball Bearing 40x90x23mm
NACHI 63082NSEC3 Contact Rubber Sealed Deep Groove Ball Bearing 40x90x23mm
Regular price
Rs. 3,624.21
Regular price
Sale price
Rs. 3,624.21
Taxes included.
Equivalent to: 6308NSEC3 6308DUC3 6308RSC3 6308RSHC3 6308PC3 6308RSRC3 6308LUC3 6308DDUC3 63082RSC3 63082RS1C3 63082RSHC3 6308PPC3 63082RSRC3 6308LLUC3
In stock
Price Break
10+
Rs. 3,225.55
19+
Rs. 3,044.34
29+
Rs. 3,008.09
39+
Rs. 2,971.85
49+
Rs. 2,935.61
74+
Rs. 2,899.37
99+
Rs. 2,718.16
199+
Rs. 2,681.92
249+
Rs. 2,645.67
499+
Rs. 2,609.43
999+
Rs. 2,536.95
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
Equivalent: 6308NSEC3 6308DUC3 6308RSC3 6308RSHC3 6308PC3 6308RSRC3 6308LUC3 6308DDUC3 63082RSC3 63082RS1C3 63082RSHC3 6308PPC3 63082RSRC3 6308LLUC3
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 40mm |
|---|---|
| Outside Diameter D | 90mm |
| Width B | 23mm |
| Min radius r | 1.5mm |
| Dynamic load | 40500 kN |
| Static load | 24100 kN |
| Max speed | 7800 rpm |
| da min | 49mm |
| Da max | 81mm |
| ra max | 1.5mm |
| Weight | 0.633 kg |
