SKU: 6307ZZNRC3/2AS-NTN

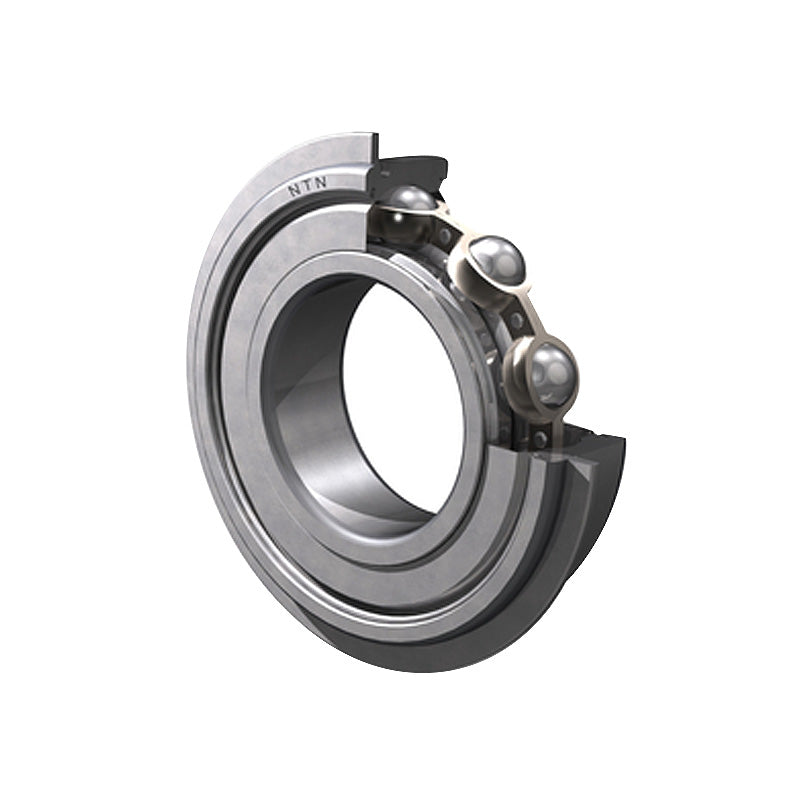

NTN 6307ZZNRC3/2AS Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 35x80x21mm - Allow 2-3 Days
Equivalent to: 6307ZZNRC3 63072ZNRC3 6307ZZNRC3 63072ZRNRC3 6307ZZENRC3 6307FFNRC3 6307DDNRC3 6307DDCNRC3 6307KDDCNRC3 EL352ZNRC3 EL35ZZNRC3 9107KDDGC3 4773L07C3 107KSFFGC3
In stock
Price Break
Description
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
Equivalent: 6307ZZNRC3 63072ZNRC3 6307ZZNRC3 63072ZRNRC3 6307ZZENRC3 6307FFNRC3 6307DDNRC3 6307DDCNRC3 6307KDDCNRC3 EL352ZNRC3 EL35ZZNRC3 9107KDDGC3 4773L07C3 107KSFFGC3
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 80mm
- Width:
- 21mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
- Snap Ring:
- Snap Ring
Technical
| --- | Bearing dimensions |
|---|---|
| d | 35mm |
| D | 80mm |
| B | 21mm |
| r<sub>s</sub> min | 1.5mm |
| --- | Loads angles and speeds |
| rNS Min. | 0.5 kN |
| C<sub>r</sub> | 37 kN |
| C<sub>or</sub> | 19.1 kN |
| C<sub>u</sub> | 1.47 kN |
| f<sub>0</sub> | 13.1 rpm |
| Grease | 8800 rpm |
| --- | Fitting Dimensions |
| Oil | 10000 rpm |
| D<sub>1</sub> Max. | 76.81mm |
| a Max. | 3.28mm |
| b Min. | 1.9mm |
| r<sub>o</sub> Max. | 0.6mm |
