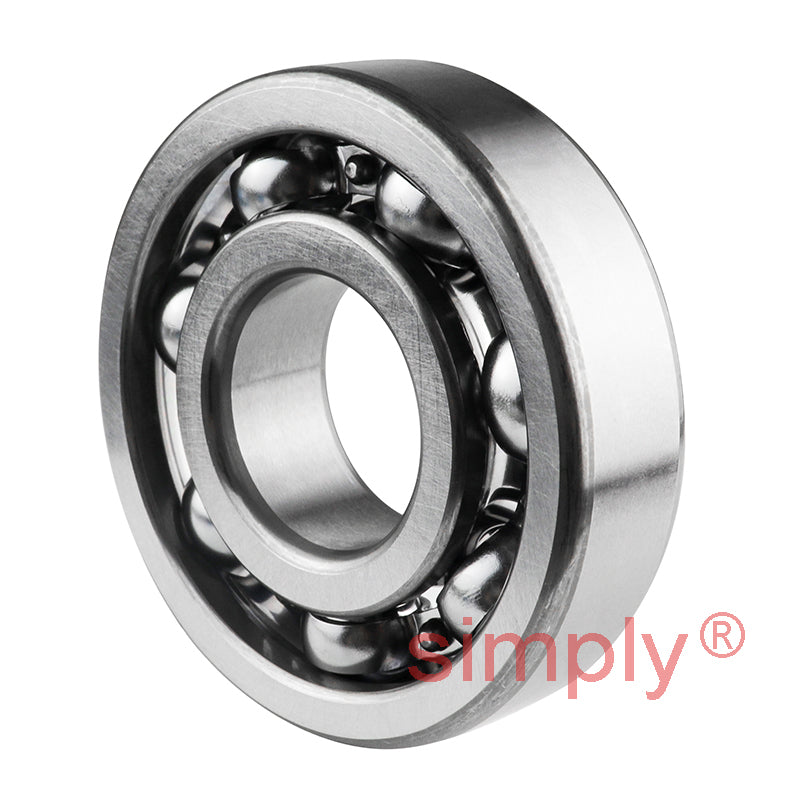

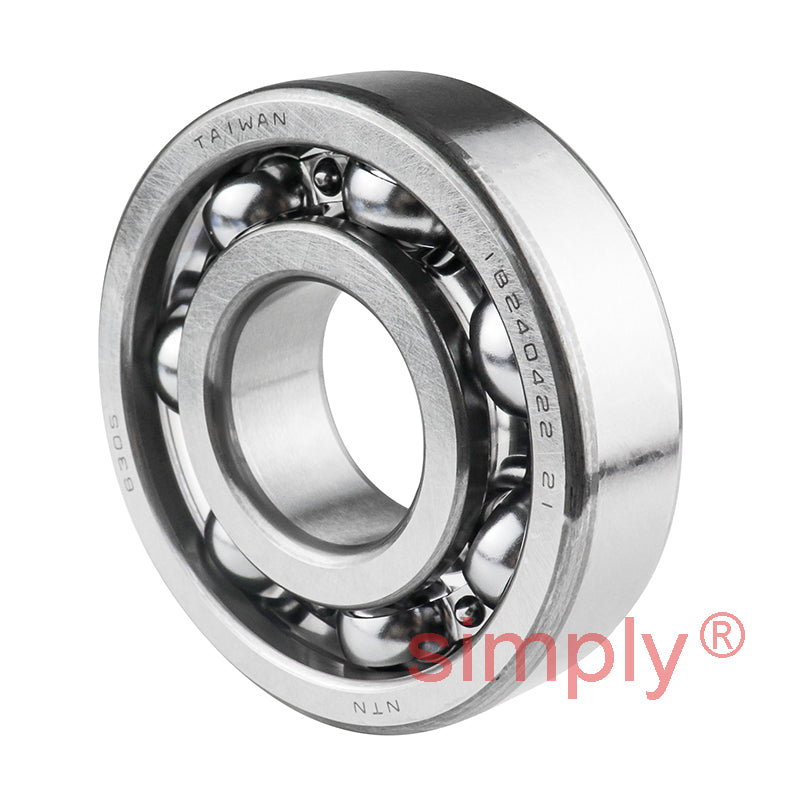

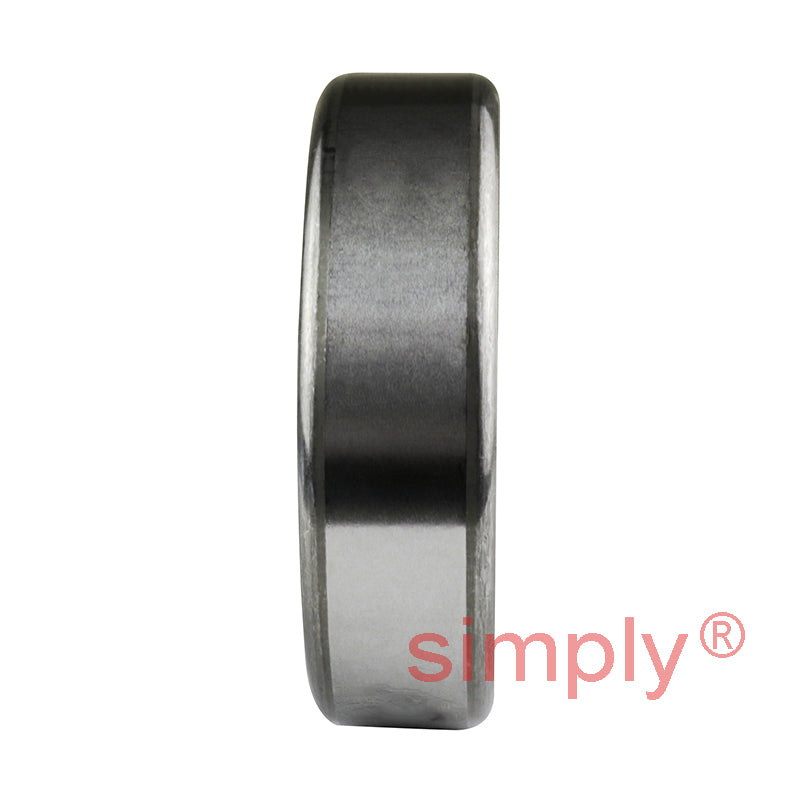

NTN 6305 Open Type Deep Groove Ball Bearing 25x62x17mm
NTN 6305 Open Type Deep Groove Ball Bearing 25x62x17mm
Regular price
Rs. 1,285.31
Regular price
Sale price
Rs. 1,285.31
Taxes included.
Equivalent to: 6305CM 305K 1305 305KS 6305 3305 6B
In stock
Price Break
10+
Rs. 1,143.93
19+
Rs. 1,079.66
29+
Rs. 1,066.81
39+
Rs. 1,053.95
49+
Rs. 1,041.10
74+
Rs. 1,028.25
99+
Rs. 963.98
199+
Rs. 951.13
249+
Rs. 938.28
499+
Rs. 925.42
999+
Rs. 899.72
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6305CM 305K 1305 305KS 6305 3305 6B
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 17mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 25mm |
| D | 62mm |
| B | 17mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 23.5 kN |
| C<sub>or</sub> | 10.9 kN |
| C<sub>u</sub> | 0.855 kN |
| f<sub>0</sub> | 12.6 kN |
| Grease | 12000 rpm |
| Oil | 14000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 31.5mm |
| D<sub>a</sub> Max. | 55.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.232 kg |
